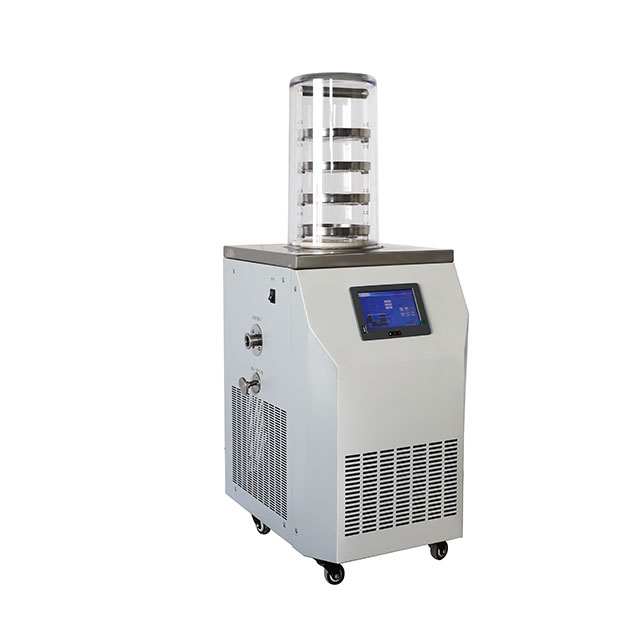

NEL-12 Vertical Vacuum Freeze Dryer Machine is an economical choice for freeze drying solution that basic research needed.
It has 3 parts includes main body,drying chamber and vacuum pump;
Cold trap temperature has -56℃ or -80℃ choose;
Condenser capacity 3-4kg

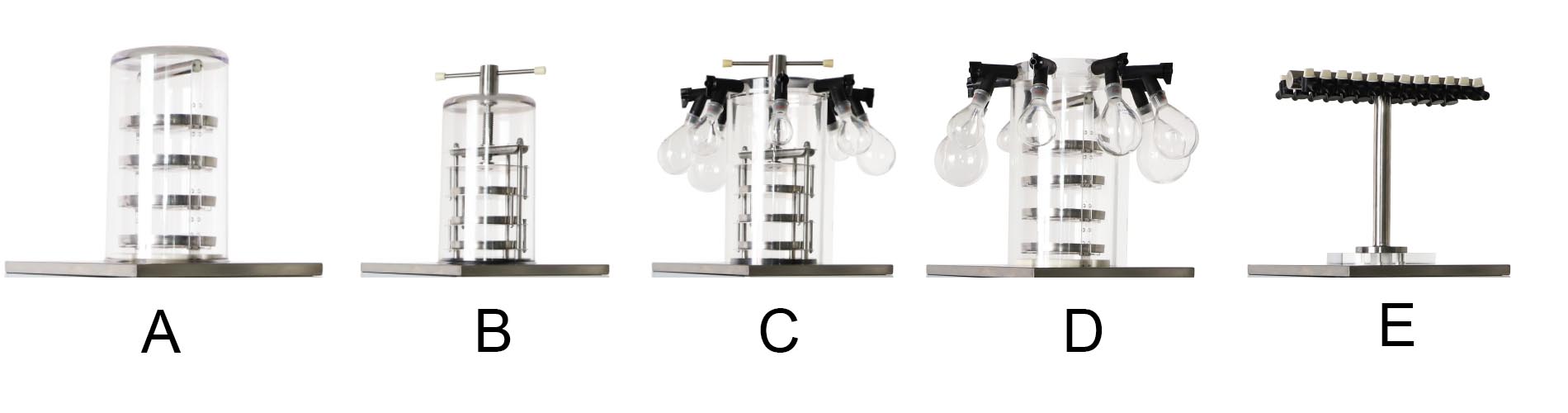

5 types to meet different samples freeze drying;
NEL-12 Vertical Vacuum Freeze Dryer Machine is an economical choice for freeze drying solution that basic research needed.
It has 3 parts includes main body,drying chamber and vacuum pump;
Cold trap temperature has -56℃ or -80℃ choose;
Condenser capacity 3-4kg
5 types to meet different samples freeze drying;
Integrated structure design, small size, no external flange, easy to use, no leakage.
Meet GLP standard request;
Cold trap and operation table are made of SS,easy cleaning;
Cold trap has pre-frozen function;

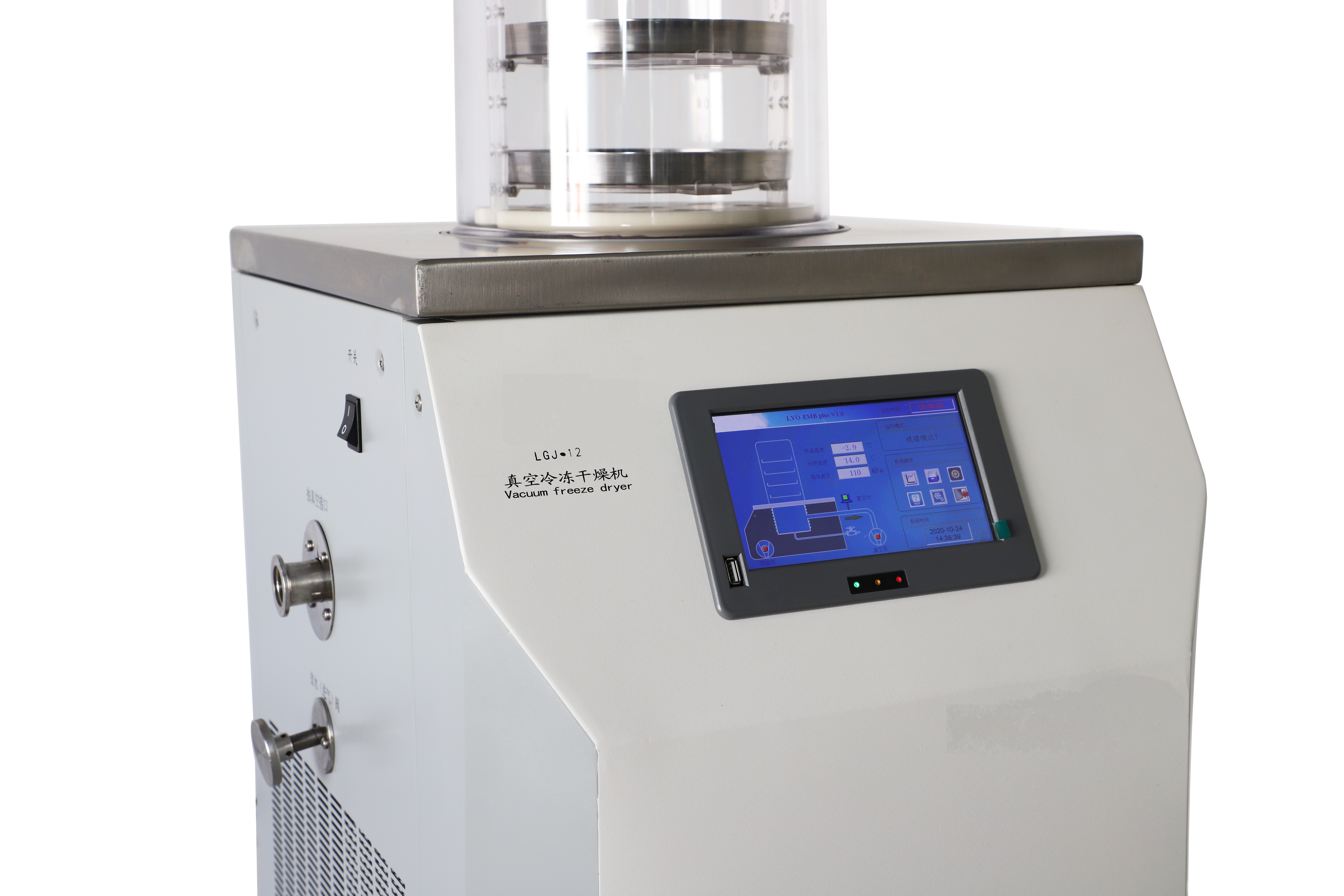

7 inch touch screen;
Professionally designed FD-LAB freeze dryer control system + SH-HPSC-I modular controller, with high reliability and stability.
The intelligent data recording system can record and display the temperature curve of the cold trap, the temperature curve of the sample and the vacuum degree curve in real time. The exported data can be browsed, printed and operated by the computer.
Integrated structure design, small size, no external flange, easy to use, no leakage.
Meet GLP standard request;
Cold trap and operation table are made of SS,easy cleaning;
Cold trap has pre-frozen function;
7 inch touch screen;
Professionally designed FD-LAB freeze dryer control system + SH-HPSC-I modular controller, with high reliability and stability.
The intelligent data recording system can record and display the temperature curve of the cold trap, the temperature curve of the sample and the vacuum degree curve in real time. The exported data can be browsed, printed and operated by the computer.
Model | NEL-12 |
Drying area | 0.09m²/0.12m² |
Trays | 3pcs /4 pcs |
Vacuum limited | ≤5pa |
Tray spacing | 70mm |
Cold trap dept | 140mm |
Cold trap dia. | Ф215mm |
Condenser | 3-4kg/24h |
Pump speed | 2L/S |
Ultimate vacuum | ≤5pa |
Main unit weight | 41kg |
Power | 970w |
Size | 580*500*720mm |
Model | NEL-12 |
Drying area | 0.09m²/0.12m² |
Trays | 3pcs /4 pcs |
Vacuum limited | ≤5pa |
Tray spacing | 70mm |
Cold trap dept | 140mm |
Cold trap dia. | Ф215mm |
Condenser | 3-4kg/24h |
Pump speed | 2L/S |
Ultimate vacuum | ≤5pa |
Main unit weight | 41kg |
Power | 970w |
Size | 580*500*720mm |
●Non-standard customization;
●Brand vacuum pump
●Anti-return oil device of vacuum pump
●Oil mist filter system
●Non-standard customization;
●Brand vacuum pump
●Anti-return oil device of vacuum pump
●Oil mist filter system
