50L Rotary Evaporator

Main Features of the 50L rotary evaporator

1, the main bracket adopts stainless steel + aluminum alloy, the structure is reasonable, and the materials are exquisite.
2, the sealing system adopts PTFE and imported fluorine rubber combination seal, can maintain high vacuum.
3, the vacuum pressure gauge shows real-time vacuum, and the vacuum can reach 0.098Mpa.
4, all glass parts using high borosilicate glass (GG-17), high temperature, corrosion protection.

Availability:
Quantity:

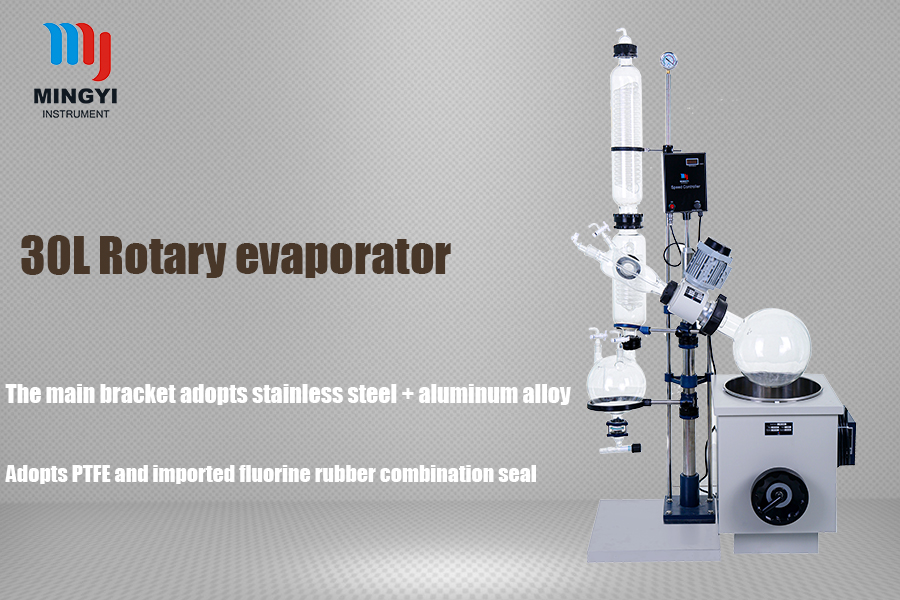

30L rotary evaporator

Brief Introduction of the 30L rotary  evaporator

30L rotary evaporator is a common laboratory equipment. It's consisted with motors, distillation flask, heating pots, receiving flask, condensers and so on. This device is mainly used for continuous distillation experiments under vacuum conditions. Our company designed 10L, 20L, 30L ,50L medium vacuum rotary vacuum evaporator for users to choose. The structure is as follows.

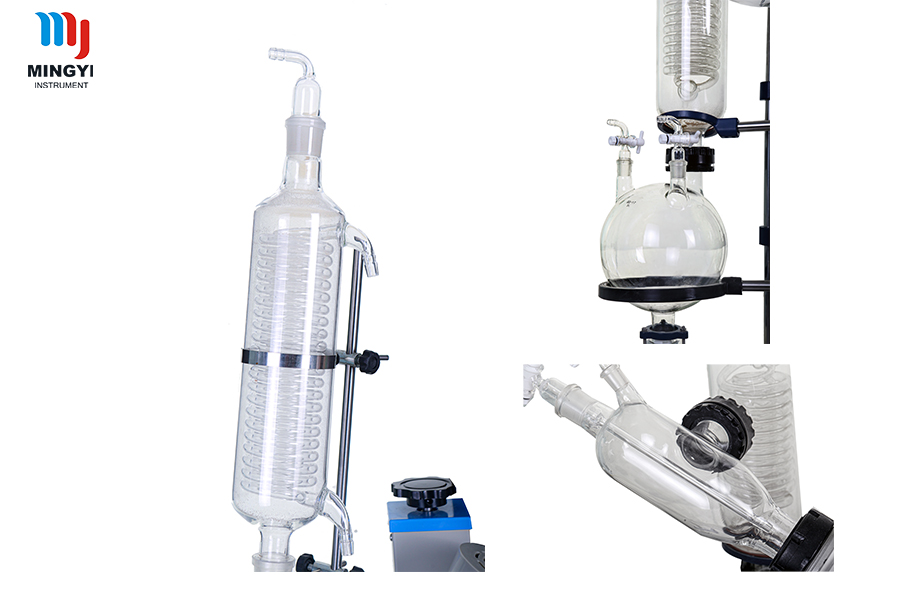

50L rotary evaporator

Main Features of the 50L rotary evaporator

1, the main bracket adopts stainless steel + aluminum alloy, the structure is reasonable, and the materials are exquisite.
2, the sealing system adopts PTFE and imported fluorine rubber combination seal, can maintain high vacuum.
3, the vacuum pressure gauge shows real-time vacuum, and the vacuum can reach 0.098Mpa.
4, all glass parts using high borosilicate glass (GG-17), high temperature, corrosion protection.
5, continuous feeding is convenient for customers to use, the valve type feeding pipe is sheathed with tetrafluoroethylene tube.


Basic parameter

Model

RE-5003

Glass material

GG-17

Holder material

Stainless steel

Pot material

Spray corrosion  710*620*700mm

Pot guts Material

Stainless steel    550*320mm

Plate size

804*574mm

Rotary bottle volume

50L    ¢125 Flanged

Collective bottle volume

20L    ¢60F langed

Vacuum

0.098Mpa

Rotary power

180W

Rotary speed

0-110rpm

Heating power

8KW

Bath temp. range

0-400℃

Temp. control accuracy

±1℃

Voltage(V/Hz)

220V/50Hz

Lifting stroke

180mm

Size (mm*mm*mm)

1520*620*2470

Packing size(mm*mm*mm)

1495*840*725  780*850*910 1.5cubic

Gross weight(KG)

191

  Function

Speed mode

Frequency Control

Speed display

Digital display

Temp. control mode

K type sensor digital display

Temp. control

Intelligent temperature control

Sealing method

Tetrafluoroethylene seal assembly

Condenser

Vertical efficiency three reflux condenser, main condenser 160 * 840, 160 * 530 pay cold

Continuous collection

Valve control

Lifting mode

Manual lifting bath pot

Temperature measuring device

19# standard port

Continuous feed

40# standard port feed valve

Discharge mode

Tetrafluoroethylene discharge valve,                      ¢ 60 flanged

Vacuum display

Vacuum table

 Optional

Lifting mode

Automatic lifting

Collective mode

Double collective bottle

Explosion proof

Proof inverter, explosion-proof motor EX180W

Frame portion

Spray or spray tetrafluoroethylene

Bath material

304 Stainless steel
