Main Features of the 5L Rotary Evaporator
1, the main bracket adopts stainless steel + aluminum alloy, the structure is reasonable, and the materials are exquisite.
2, the sealing system adopts PTFE and imported fluorine rubber combination seal, can maintain high vacuum.
3, the vacuum pressure gauge shows real-time vacuum, and the vacuum can reach 0.098Mpa.
Availability: | |
---|---|
Quantity: | |

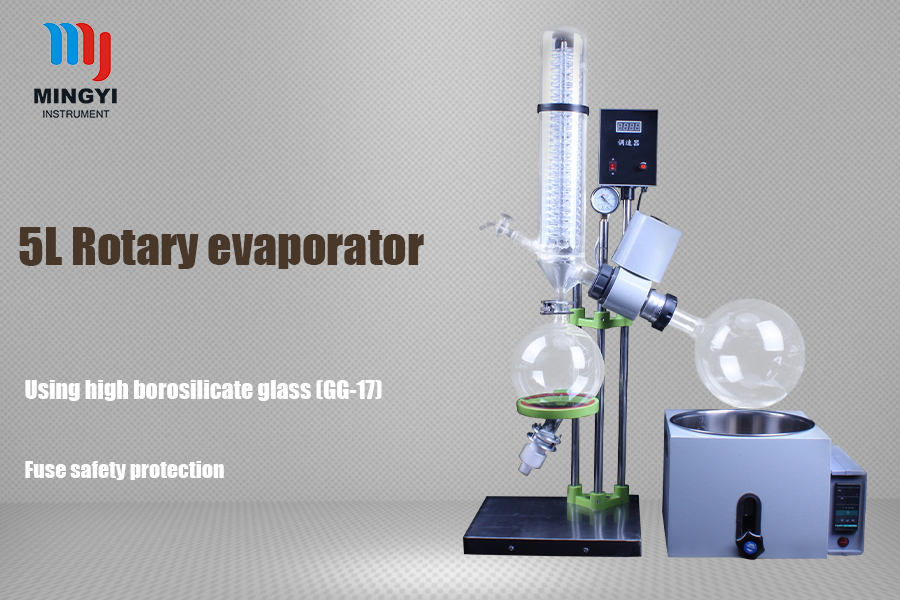

Brief Introduction of the 5L Rotary Evaporator
5L explosion-proof rotary evaporator (instrument) is our company in order to adapt to the modern pharmaceutical and chemical reaction test production needs, the RE series rotary evaporator (instrument) and a new generation of products based on the national key institutions joint development and production, the series of products using explosion-proof motor, explosion-proof explosion-proof inverter and intelligent temperature control box. PTFE sealing material, sealing, corrosion resistance, abrasion resistance, frequency conversion speed, smooth operation. RE-501 explosion proof rotary evaporator is an indispensable instrument for evaporation, concentration, crystallization, drying, separation and solvent recovery in the research and production of medicine, chemical and biological products. The rotary evaporator is developed under the condition of vacuum and negative pressure, using the principle of constant temperature heating and thin film evaporation. Rotary evaporator with stepless rotation of the glass bottle rotating at a constant speed, the material is formed large area uniform film on the bottle wall, then the intelligent thermostatic water bath for rotating the bottle uniformly heated at high speed under the condition of vacuum evaporation, solvent vapor by high performance glass condenser cooling, recycling in collecting bottle. Rotary evaporator is working under vacuum, and all material contact part adopts the high temperature resistant borosilicate glass and Teflon material, concentrated especially suitable for biological products of high temperature easy decomposition degeneration and purification.
Brief Introduction of the 5L Rotary Evaporator
5L explosion-proof rotary evaporator (instrument) is our company in order to adapt to the modern pharmaceutical and chemical reaction test production needs, the RE series rotary evaporator (instrument) and a new generation of products based on the national key institutions joint development and production, the series of products using explosion-proof motor, explosion-proof explosion-proof inverter and intelligent temperature control box. PTFE sealing material, sealing, corrosion resistance, abrasion resistance, frequency conversion speed, smooth operation. RE-501 explosion proof rotary evaporator is an indispensable instrument for evaporation, concentration, crystallization, drying, separation and solvent recovery in the research and production of medicine, chemical and biological products. The rotary evaporator is developed under the condition of vacuum and negative pressure, using the principle of constant temperature heating and thin film evaporation. Rotary evaporator with stepless rotation of the glass bottle rotating at a constant speed, the material is formed large area uniform film on the bottle wall, then the intelligent thermostatic water bath for rotating the bottle uniformly heated at high speed under the condition of vacuum evaporation, solvent vapor by high performance glass condenser cooling, recycling in collecting bottle. Rotary evaporator is working under vacuum, and all material contact part adopts the high temperature resistant borosilicate glass and Teflon material, concentrated especially suitable for biological products of high temperature easy decomposition degeneration and purification.
Main Features of the 5L Rotary Evaporator
1, the main bracket adopts stainless steel + aluminum alloy, the structure is reasonable, and the materials are exquisite.
2, the sealing system adopts PTFE and imported fluorine rubber combination seal, can maintain high vacuum.
3, the vacuum pressure gauge shows real-time vacuum, and the vacuum can reach 0.098Mpa.
4, all glass parts using high borosilicate glass (GG-17), high temperature, corrosion protection.
5, continuous feeding is convenient for customers to use, the valve type feeding pipe is sheathed with tetrafluoroethylene tube.
6, vertical double coil coil condenser, ensure high recovery, additional tubes.
7, microcomputer ON-OFF power switch control.
8, bath pot digital display, intelligent constant temperature control, K type sensor fast and accurate delivery temperature.
9, electronic stepless speed regulation (0-120rpm), speed digital display, rotation and torsion settings, easy to operate.
10 fuse safety protection.
11, the pot adopts high quality stainless steel, corrosion resistant and durable.
12, bath pan hand wheel lifting.
13, the collection bottle is equipped with a transfer material to facilitate the collection and discharge of evaporation extracts.
14, the whole appliance explosion-proof treatment, speed control, temperature control integration, aluminum shell explosion proof, explosion-proof motor, cable through explosion-proof tube.
Main Features of the 5L Rotary Evaporator
1, the main bracket adopts stainless steel + aluminum alloy, the structure is reasonable, and the materials are exquisite.
2, the sealing system adopts PTFE and imported fluorine rubber combination seal, can maintain high vacuum.
3, the vacuum pressure gauge shows real-time vacuum, and the vacuum can reach 0.098Mpa.
4, all glass parts using high borosilicate glass (GG-17), high temperature, corrosion protection.
5, continuous feeding is convenient for customers to use, the valve type feeding pipe is sheathed with tetrafluoroethylene tube.
6, vertical double coil coil condenser, ensure high recovery, additional tubes.
7, microcomputer ON-OFF power switch control.
8, bath pot digital display, intelligent constant temperature control, K type sensor fast and accurate delivery temperature.
9, electronic stepless speed regulation (0-120rpm), speed digital display, rotation and torsion settings, easy to operate.
10 fuse safety protection.
11, the pot adopts high quality stainless steel, corrosion resistant and durable.
12, bath pan hand wheel lifting.
13, the collection bottle is equipped with a transfer material to facilitate the collection and discharge of evaporation extracts.
14, the whole appliance explosion-proof treatment, speed control, temperature control integration, aluminum shell explosion proof, explosion-proof motor, cable through explosion-proof tube.
Basic parameter | Model | RE-501 |
Glass material | GG-17 | |
Holder material | Stainless steel | |
Pot material | Spray corrosion 310*320*240mm | |
Pot guts Material | Stainless steel 280*170mm | |
Plate size | 350*330mm | |
Rotary volume | 5L ¢50 Flanged | |
Collective bottle volume | 3L 35# Milling mouth | |
Vacuum | 0.098Mpa | |
Rotary power | 40W | |
Rotary speed | 0-120rpm | |
Heating power | 2KW | |
Heating bath temp. range | 0-400℃ | |
Temp. control accuracy | ±1℃ | |
Voltage | 220V/50Hz | |
Lifting stroke | 120mm | |
Size(mm*mm*mm) | 700*335*1009mm | |
Packing size (mm*mm*mm) | 1040*620*410 0.26方 | |
Gross weight(KG) | 38 | |
Function | Speed mode | Electronic variable speed |
Speed Display | Digital display | |
Temp. display | K type sensor digital display | |
Temp. control accuracy | Intelligent temperature control | |
Sealing method | Tetrafluoroethylene seal assembly | |
Condenser | Vertical condenser 100*590mm | |
Lifting mode | Manual lifting bath pot | |
Continuous feed | 19 # standard port feed valve | |
Discharge mode | Tetrafluoroethylene discharge valve, ¢ 50 flanged | |
Vacuum display | Vacuum table | |
Optional | Explosion proof | Proof inverter, explosion-proof motor EX40W |
Frame portion | Spray or spray tetrafluoroethylene |
Basic parameter | Model | RE-501 |
Glass material | GG-17 | |
Holder material | Stainless steel | |
Pot material | Spray corrosion 310*320*240mm | |
Pot guts Material | Stainless steel 280*170mm | |
Plate size | 350*330mm | |
Rotary volume | 5L ¢50 Flanged | |
Collective bottle volume | 3L 35# Milling mouth | |
Vacuum | 0.098Mpa | |
Rotary power | 40W | |
Rotary speed | 0-120rpm | |
Heating power | 2KW | |
Heating bath temp. range | 0-400℃ | |
Temp. control accuracy | ±1℃ | |
Voltage | 220V/50Hz | |
Lifting stroke | 120mm | |
Size(mm*mm*mm) | 700*335*1009mm | |
Packing size (mm*mm*mm) | 1040*620*410 0.26方 | |
Gross weight(KG) | 38 | |
Function | Speed mode | Electronic variable speed |
Speed Display | Digital display | |
Temp. display | K type sensor digital display | |
Temp. control accuracy | Intelligent temperature control | |
Sealing method | Tetrafluoroethylene seal assembly | |
Condenser | Vertical condenser 100*590mm | |
Lifting mode | Manual lifting bath pot | |
Continuous feed | 19 # standard port feed valve | |
Discharge mode | Tetrafluoroethylene discharge valve, ¢ 50 flanged | |
Vacuum display | Vacuum table | |
Optional | Explosion proof | Proof inverter, explosion-proof motor EX40W |
Frame portion | Spray or spray tetrafluoroethylene |
