RE-100L rotary evaporator is mainly used in the concentration, crystallization, drying, separation and solvent recovery of pharmaceutical, chemical and biological pharmaceutical industries.
Availability: | |
---|---|
Quantity: | |

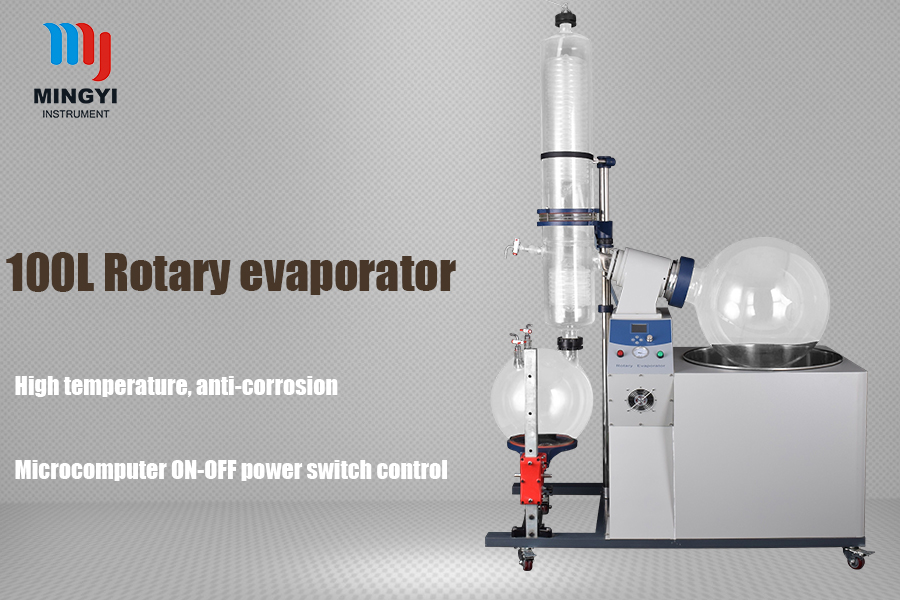

Brief Introduction of the RE-100L Rotary evaporator
RE-100L rotary evaporator is mainly used in the concentration, crystallization, drying, separation and solvent recovery of pharmaceutical, chemical and biological pharmaceutical industries. Its principle is: under vacuum condition, constant temperature heating makes the rotary bottle rotate at constant speed, and the material forms large area film on the bottle wall, so it can be evaporated efficiently. The solvent evaporation is cooled by the high-efficiency glass condenser and recovered in the collecting bottle, so as to greatly improve the evaporation efficiency. The utility model is especially suitable for concentrating and purifying biological articles with high temperature and easy decomposition and degeneration.
Brief Introduction of the RE-100L Rotary evaporator
RE-100L rotary evaporator is mainly used in the concentration, crystallization, drying, separation and solvent recovery of pharmaceutical, chemical and biological pharmaceutical industries. Its principle is: under vacuum condition, constant temperature heating makes the rotary bottle rotate at constant speed, and the material forms large area film on the bottle wall, so it can be evaporated efficiently. The solvent evaporation is cooled by the high-efficiency glass condenser and recovered in the collecting bottle, so as to greatly improve the evaporation efficiency. The utility model is especially suitable for concentrating and purifying biological articles with high temperature and easy decomposition and degeneration.
Main Features of the RE-100L Rotary evaporator
This product is the first large capacity rotary evaporator developed and manufactured in China at the first time in our country. It has created a large capacity rotary evaporator in our country and filled the blank of the domestic manufacturers of rotary evaporators.
A universal wheel is arranged under the main body of the RE-100L rotary evaporator, the whole machine can move, and the bath pot can automatically rise and fall, and the speed regulation and the temperature control are concentrated on the table top of the host machine for operation, and the operation of the user is convenient to a maximum extent. Brushless motor is adopted in rotating motor, which is safe, stable, noiseless, and liquid crystal display speed.
Main Features of the RE-100L Rotary evaporator
This product is the first large capacity rotary evaporator developed and manufactured in China at the first time in our country. It has created a large capacity rotary evaporator in our country and filled the blank of the domestic manufacturers of rotary evaporators.
A universal wheel is arranged under the main body of the RE-100L rotary evaporator, the whole machine can move, and the bath pot can automatically rise and fall, and the speed regulation and the temperature control are concentrated on the table top of the host machine for operation, and the operation of the user is convenient to a maximum extent. Brushless motor is adopted in rotating motor, which is safe, stable, noiseless, and liquid crystal display speed.
Basic parameter | Model | RE-100L |
Glass material | GG-17 | |
Holder material | Stainless steel | |
Pot material | Spray corrosion 820*820mm | |
Pot guts Material | Stainless stell 795*330mm | |
Plate size | 1600*830mm | |
Rotary volume | 100L ¢180 Flanged | |
Collection bottle volume | 50L 40 # ball mouth | |
Vacuum | 0.098Mpa | |
Rotary speed | 0-110rpm | |
Rotary power | 400W 220V/50Hz | |
Heating bath power | 12KW 380V/50Hz | |
Heating bath temp.control | 0-400℃ | |
Temp. control accuracy | ±1℃ | |
Lifting stroke | 180mm | |
Size (mm*mm*mm) | 1700*850*2600 | |
G..W(KG) | 400 | |
Function | Speed mode | Frequency Control |
Speed display | LED display | |
Temp. display | K type sensor digital display | |
Temp. control mode | Intelligent temperature control | |
Sealing method | Tetrafluoroethylene seal assembly | |
Condenser | Vertical efficiency three reflux condenser, main condenser 230 * 950, 230 * 530 pay cold | |
Continuous collection | Valve control | |
Lifting mode | Host automatic lifting | |
Continuous feed | 29 # standard port feed valve | |
Discharge mode | Tetrafluoroethylene discharge valve | |
Vacuum display | Vacuum table |
Basic parameter | Model | RE-100L |
Glass material | GG-17 | |
Holder material | Stainless steel | |
Pot material | Spray corrosion 820*820mm | |
Pot guts Material | Stainless stell 795*330mm | |
Plate size | 1600*830mm | |
Rotary volume | 100L ¢180 Flanged | |
Collection bottle volume | 50L 40 # ball mouth | |
Vacuum | 0.098Mpa | |
Rotary speed | 0-110rpm | |
Rotary power | 400W 220V/50Hz | |
Heating bath power | 12KW 380V/50Hz | |
Heating bath temp.control | 0-400℃ | |
Temp. control accuracy | ±1℃ | |
Lifting stroke | 180mm | |
Size (mm*mm*mm) | 1700*850*2600 | |
G..W(KG) | 400 | |
Function | Speed mode | Frequency Control |
Speed display | LED display | |
Temp. display | K type sensor digital display | |
Temp. control mode | Intelligent temperature control | |
Sealing method | Tetrafluoroethylene seal assembly | |
Condenser | Vertical efficiency three reflux condenser, main condenser 230 * 950, 230 * 530 pay cold | |
Continuous collection | Valve control | |
Lifting mode | Host automatic lifting | |
Continuous feed | 29 # standard port feed valve | |
Discharge mode | Tetrafluoroethylene discharge valve | |
Vacuum display | Vacuum table |
