Water Circulating Vacuum Pump

SHZ-DIII water circulating vacuum pump series uses the circulating water as the working fluid, and uses the jet to produce negative pressure to spray.It provides vacuum conditions for evaporation, distillation, crystallization, drying, sublimation, decompression and filtration

Availability:
Quantity:

Water Circulating Vacuum Pump

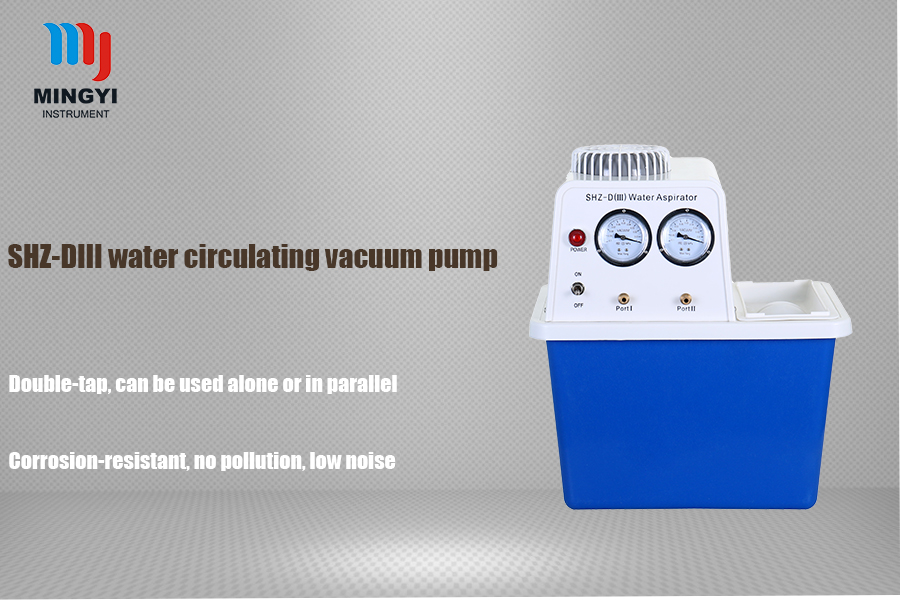

Brief Introduction of the SHZ-DIII Water Circulating Vacuum Pump

SHZ-DIII water circulating vacuum pump series uses the circulating water as the working fluid, and uses the jet to produce negative pressure to spray.It provides vacuum conditions for evaporation, distillation, crystallization, drying, sublimation, decompression and filtration.It is especially suitable for laboratory and industrial test in colleges and universities, research institutes, chemical, pharmaceutical, biochemical, food, pesticide, agricultural engineering, biological engineering and other industries

Water Circulating Vacuum Pump

Main features of SHZ-DIII water circulating vacuum pump:

1. This machine adopts double-tap, can be used alone or in parallel, with two tables;

 2. The host of stainless steel stamping, sophisticated appearance, the case is of special engineering plastics; 3. Silencer with a special fluid, reduce water, gas and liquid friction noise, so that higher and more stable vacuum. Corrosion-resistant, no pollution, low noise, easy to move, but also the user needs to install a vacuum valve, easy to operate; 4. Storage tanks using a newly developed special plastic material, containing acetone, ether, chloroform and other organic chemicals operations, with some corrosion resistant dissolution.


Application of SHZ-DIII water circulating vacuum pump

SHZ-DIII water circulating vacuum pump could be used in various kinds of distillation and filtration experiments. It's an important and ideal device for lab and other chemical departments.

Model

Tank

Volume

Flow

Rate

Lift

Single Tap

Sucking Rate

Tapping

Number

Vacuum

Degree

Power

Supply

Power

Surface

Dimension

Weight

SHZ-DⅢ

15L

20L/MIN

8M

10L/MIN

2

0.098MPA

220V

180W

400*280*420

15KG

SHZ-DⅢ
Transparency

Water Tank

15L

20L/MIN

8M

10L/MIN

2

220V

180W

400*280*420

15KG

SHZ-DⅢ
Stainless Steel

Water Tank

15L

20L/MIN

8M

10L/MIN

2

220V

180W

400*280*420

15KG

SHZ-DⅢ
Four Meter

Four Tapping

15L

40L/MIN

12M

10L/MIN

4

220V

370W

400*280*420

17KG

SHZ-DⅢ
Four Meter

Four Tapping

15L

40L/MIN

12M

10L/MIN

4

220V

370W

400*280*420

17KG
