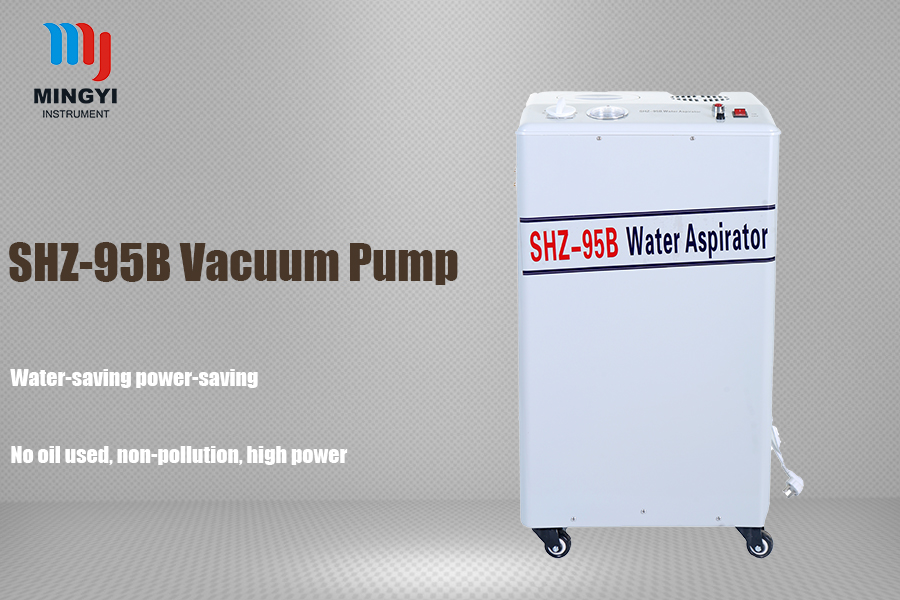

SHZ-95B Vacuum Pump

Features of the SHZ-95B Vacuum Pump

1.No oil used, non-pollution, high power, low noise,easy and flexible.
2.Water-saving power-saving, it is a single table multi-pipe operation machine.
3.With five taps, can be used independently or in parallel combination.
4. Corrosion-resistant, non-pollution, stable operation, long life.

Availability:
Quantity:

vacuum pump

Brief Introduction of the SHZ-95B Vacuum Pump

The main machine is made of two types of stainless steel movement and anti-corrosion material movement. It has the advantages of corrosion resistance, no pollution, low noise, convenient movement, and also can install vacuum control valve according to the user's needs. At the same time, five students can do chemical experiments to reduce the experimental space. Five taps with five suction heads can be used at the same time.

A circulating water vacuum pump is based on the use of vacuum pump, according to the characteristics of the laboratory area is small, according to the Japanese type pump, one-time molding shell, reducing the volume to be improved and has the advantages of small volume, light weight, beautiful appearance and other characteristics, double table, double suction, four meter four tap, double the same the vacuum pump, even in the teachers' visual presentation, students also is a high power long pumping a series of

water circulating vacuum pump in a vertical circulating water vacuum pump, the series design of internal water circulation, can simultaneously exhaust the air has no oil, no pollution, high power, low noise.Flexible and convenient, saving water and electricity, etc.


vacuum pump

Characteristic of the SHZ-95B Vacuum Pump

1.No oil used, non-pollution, high power, low noise,easy and flexible.
2.Water-saving power-saving, it is a single table multi-pipe operation machine.
3.With five taps, can be used independently or in parallel combination.
4. Corrosion-resistant, non-pollution, stable operation, long life.
5. Main engine has polypropylene and stainless steel two models.


Model

SHZ-95B vacuum pump

Power(w)

370

Voltage(v)

220/50

Flow(L/min)

80

Lift(m)

12

Max vacuum degree(Mpa)

0.098

Single tap air sucking amount

10

Number of taps

5

Safety functions

Check valve

Capacity of water storage tank(L)

50

Materials of water tank

PP/Stainless steel

Dimension(mm)

450*340*870

Weight(kg)

35
