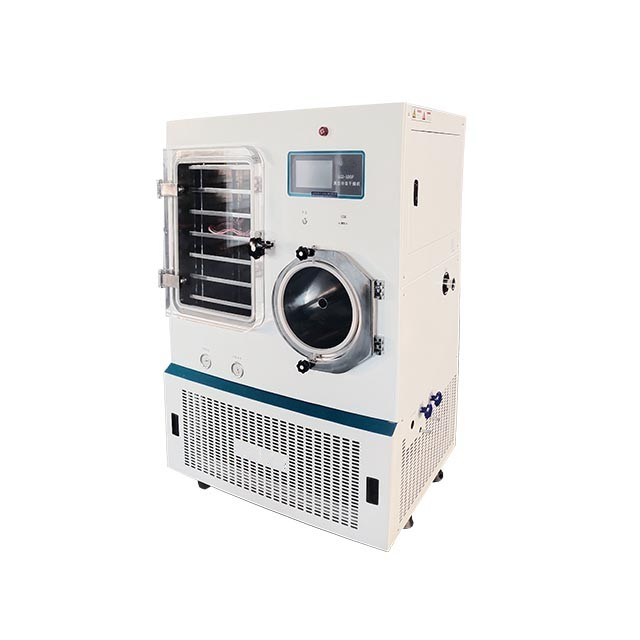

NEL-100F Standard Type Silicon Oil Heating Freeze Dryer

This NEL-100F Standard Type Silicon Oil Heating Freeze Dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc.

Availability:
Quantity:

This NEL-100F Standard Type Pilot Freeze Dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process,a long term preservation is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.



Freezing and drying process of NEL-100F (silicon oil heating)  are finished in the same place (patented product). It changes the cumbersome operation of the drying process in the past, prevents the contamination of materials, and realized dry sublimation automatically. The model is equipped with shelf heating and has programmable functions. It can memorize freeze-dried curves for users to observe the lyophilization process of materials


Model

NEL-100F

freeze drying area

1.04㎡

tray numbers

6pcs

shelf temp. range

-55℃~+70℃

cold trap temp.

≤-75℃

ice collecting capacity

≥15KG/24h

ultimate vacuum

≤5pa

Power

6500w
Shelf size480*360mm
tray size475*355mm
Shelf space70mm
Cooling modeFan cooling


freeze dryer

Suitable for freeze drying of bulk (liquid, pasty, solid) conventional materials.


·eutectic point tester

·freeze drying finished judgement function

·imported vacuum pump

·vacuum pump anti-returned oil device

·oil mist filter system

·Vacuum adjustment system

·LYO-MEGA Software System

·Mobile phone APP monitoring system

·data recorder

·backfill filter

·Automatic backfill and drainage control system

·Capacitance vacuum gauge

·External hanging bottle device

·non-standard customized
