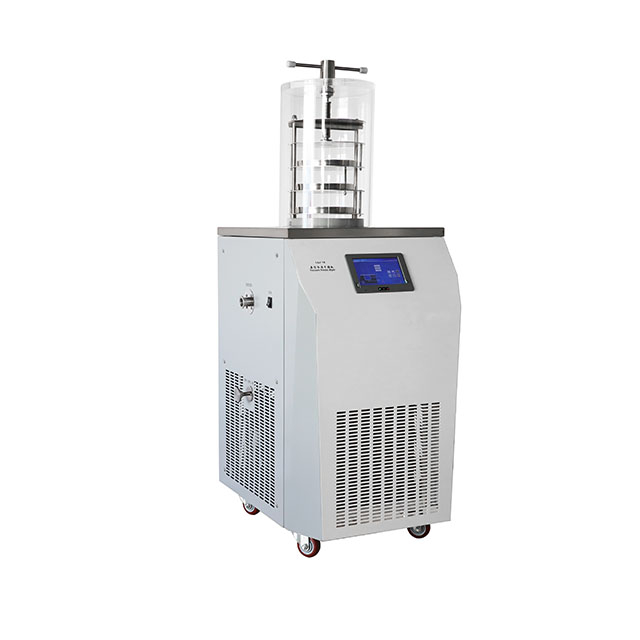

NEL-18 Series Vertical Freeze Dryer Lyophilizer Machine

NEL-18 Series Vertical Freeze Dryer Machine most used for basic laboratory freeze drying research;
Drying area: 0.09m²/0.18m²/0.27m²
Condenser:6kg
-56℃/-80℃
Availability:
Quantity:
Inquire

NEL-18 series Vertical Freeze Dryer are economical basic laboratory needed.

They are simple structure,easy operate.

It has three main components of this kind freeze dryer: main body,drying chamber and vacuum pump;

And it has 5 types to meet different samples' freeze drying;

钟罩式

ModelNEL-18
Trays3/4/6 pcs
Drying area0.09/0.18/0.27m²
Condenser
6kg
Vacuum ≤5pa
Tray spacing70mm
Cold trap dept400mm
Cold trap dia.Ф270mm
Pumping speed4L/S
Weight105kg
Power
1400w
Size630*580*970mm
-80℃ size810*580*950mm


Optional:

●Non-standard customization;

●Brand vacuum pump

●Anti-return oil device of vacuum pump


Packing list:

　    ·main unit ×1
　　·vacuum pump×1
　　·standard drying shelf ×1
　　·multi-manifold standard dyring chamber ×1
　　·smaple containers Φ200mm×4
　　·pre-freezing shelf×1
　　·user's manual×1
　　·warranty card ×1
　　·production certification×1
　　·other accessories
