High Temperature Oil Bath

Main Features of the High Temperature Oil Bath

1.Surface is processed by electrostatic spraying technology, liner and cover is made from stainless steel, corrosion resistant.
2. The device can be used for water bath as well as oil bath. Water bath with an accuracy of ±0.1℃, oil bath with an accuracy of ±1℃.
3. Volume range: 5L, 10L, 20L, 30L, 50L, 80L, 100L, can be custom-made according to client requirements.

Availability:
Quantity:

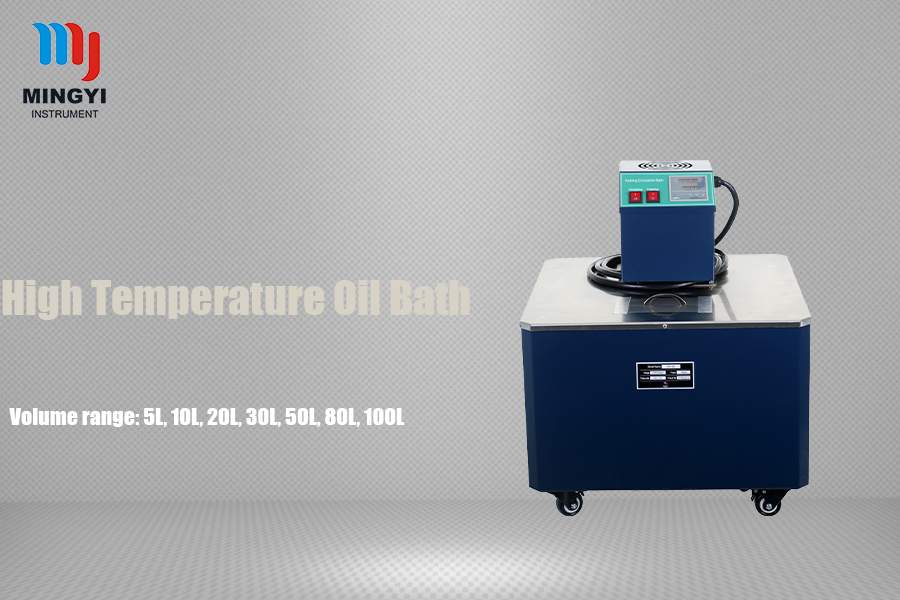

oil bath


Main Features of the High Temperature Oil Bath

1.Surface is processed by electrostatic spraying technology, liner and cover is made from stainless steel, corrosion resistant.
2. The device can be used for water bath as well as oil bath. Water bath with an accuracy of ±0.1℃, oil bath with an accuracy of ±1℃.
3. Volume range: 5L, 10L, 20L, 30L, 50L, 80L, 100L, can be custom-made according to client requirements.
4. Temperature control function: inbuilt new generation PID automatic temperature control procedure, equipping with large screen LCD in both Chinese and English, digital display resolution ratio is 0.01℃.
5. Inner circulating function: use centrifuge circulating pump with no heat. The U type design of inner circulating system makes it in high balance of flow field and temperature field.
6. Fine workmanship of front panel and table-board, plus unique R circular bead design to protect operator.
7. Water discharge system be used to various laboratory’s liquid changing.
8. Circulating system is made from stainless steel and cooper, anti-rust and anti-corrosion.
9. Solid-state relay to control circuit, contactless and no naked fire.
10. Pumping flow as high as 15L/min.


oil bath




Basic parameter

Product name

High temperature oil bath

Model

GY-5

GY-10、20

GY-30、50

GY-80、100

Work for glass reactor

1-5L

10-20L

30-50L

80-100L

Material

304 stainless steel

Volume(L)

12

28

50

71

Oil pump power(W)

40

120

Heating power(KW)

2

3

5

8

Voltage

220V/50Hz

380V/50Hz

Flow L/MIN

5-10

Lift(M)

8-12

Out of the oil nozzle

4min

6min

Oil tube

Silicone tube

Stainless steel bellows

Temperature control mode

Intelligent temperature control

Temp. display

K type sensor digital display

Heating bath temperature range

0-300℃

Temp. Control accuracy

±1℃

Inside pot size (mm*mm*mm)

¢250*240

390*280*255

430*430*270

490*440*330

Box size (mm*mm*mm)

305*305*440

500*400*315

500*500*315

550*500*350

Size (mm*mm*mm)

435*305*630

630*400*630

630*500*630

680*500*665

Packing size (mm*mm*mm)

590*460*460

730*500*830

730*600*830

780*600*865

Gross weight(KG)

16

33

36

40

Optional

Explosion proof

Optional explosion-proof electrical
