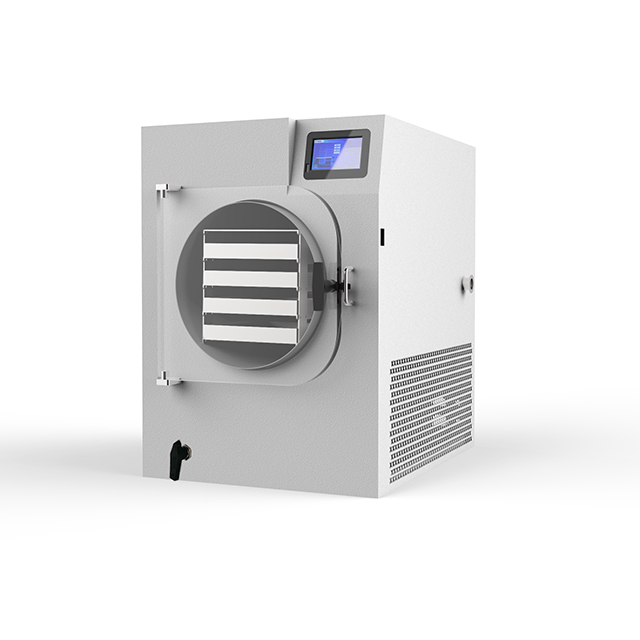

NG-04 4kg Home Freeze Dryer For Food Drying

NG-04 is professional made for home using freeze dryer.
Smart,Intellgeant,humanized design,compact structure,high automatic degree,one button to complete the whole process of freeze-drying
Capacity:4kg/batch;
Condenser: 4kg;
Cold trap temperature: -45℃
Availability:
Quantity:

Application fields of small NG-04 food freeze dryer:

Vegetables: edible mushrooms, garlic slices, chives, onions, green beans, peas, cucumbers, sweet corn kernels, carrot slices, spinach, asparagus, wild vegetables, etc.

Aquatic products and meat: shellfish, shrimp, fish sticks, beef, pork, chicken, lamb diced, etc.

Seasoning: garlic powder, ginger powder, onion powder, tomatoes, pepper.

Instant beverages: coffee, tea, soup, soy milk, milk, etc.

Convenience food: children's food, snack food, camp food.

Pharmaceutical field: Western medicine tablets, reagents, powder injection, fresh Chinese herbal medicine, ginseng, velvet antler, wolfberry, Panax notoginseng, etc.

Material field: freeze-drying of new graphene materials;

Biological field: freeze-dried flowers, placenta, cells, etc.


1. Humanized design , plug and play, beautiful appearance, compact structure and high cost performance.

2. The integrated design of the box and trap, the sublimation channel is shorter, which is conducive to the rapid sublimation of a large amount of water vapor.

3. The original imported refrigeration compressor has large cooling capacity, high efficiency and energy saving, long service life and low noise.

4. Using aerospace-grade high light-transmitting plexiglass door, the whole process of sample freeze-drying changes can be observed in real time.

5. The operation is simple and the degree of automation is high, and the whole process of freeze-drying can be completed with only one button.

6. The standard freeze-drying process is preset, and there is no need to deeply understand the cumbersome freeze-drying principle and freeze-drying process. One-click process introduction.

7. Intelligent fault diagnosis technology, displaying fault information in the form of text, which greatly facilitates equipment maintenance and fault repair.

8. Security lock function. Prevent misoperation from modifying system status and process parameters, resulting in freeze-drying failure or instrument damage.

9. The clapboard adopts intelligent energy-saving temperature control technology, with high temperature control accuracy, remarkable energy-saving effect, and stable and reliable system.

10. One-key quick defrosting technology, safe and efficient.


ModelNG-04
Drying area0.4m²
Cold trap temp.≤-45℃(no load)
Speeding2L/s
Shelves4
Shelf size540*200mm
Size510x700x670mm
Condenser
≥4Kg
Vacuum
≤10Pa
Power
2kw
