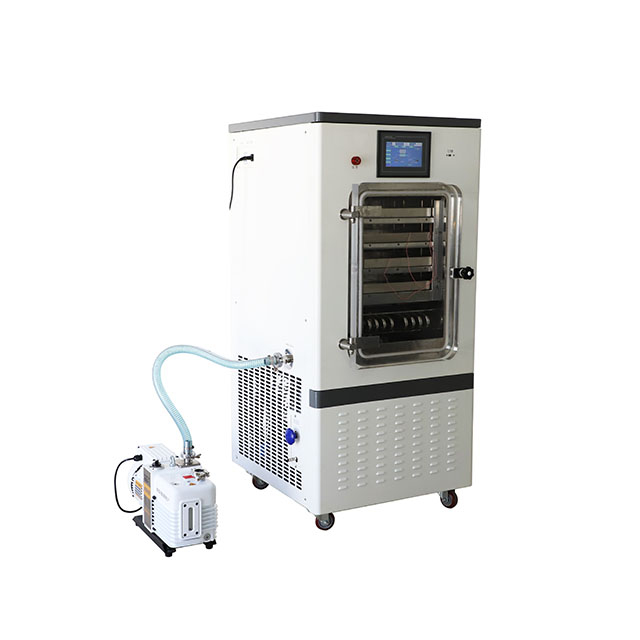

NEL-30FD Freeze Dryer Drying Machine with 8kg condenser capacity

NEL-30FD Freeze Dryer is an in-situ dryer with electric heating.
Drying area:0.4m²
Cold trap: -60℃/-80℃

NEL-30FD Electric Heating In-situ Freeze Dryer Drying Equipment most used for generally samples to dry;

Based on the basic request,it has plates heating function,can control temperature more precise;

Pre-frozen and drying process together,more easy operation,and avoid material contamination;

Cold trap has -60℃ and -80℃ two choice to meet most material request;


1. Pre-freezing and drying are completed in situ, which is easy to operate;

2. The door of the drying chamber is made of ACRYLIC material, which is colorless and transparent, and the whole process of freeze-drying can be observed.

3. Can be connected to inert gas source;

4. The cold trap can capture ice evenly and has strong ice capture ability.

5. International famous brand compressor, high efficiency, energy saving and low noise.

6. The shelf temperature difference is small, the temperature control precision is high, and the drying effect is uniform.

7. The freeze-drying curve optimization control technology can control the cooling rate in the pre-freezing stage, and at the same time control the sample heating rate in the sublimation and desorption drying stages, and select a vacuum degree adjustment system.

8. Powerful sensor calibration function to ensure the accuracy of measured values for long-term use.

9. 7-inch true color industrial embedded touch screen + SH-HPSC-II modular controller, high control precision

10. Professionally designed FD-EMB control system,

11. Intelligent data recording system;

12. Flexible manual + automatic control mode,

13. Real-time alarm display and historical alarm query function

14. The user level and password can be set, and the operation management can be carried out in a decentralized manner.

Drying area
Trays4 PCS
Shelves temperature-50C~+70C
Limited vacuum≤5Pa
cold trap temp≤-60℃,optional ≤-80℃
Condenser capacity≥8KG/24h
Pumping speed4L/S
Ultimate vacuum≤5pa
Main unit weight280kg
Main unit dimensions770 x 740 x 1500 mm
Cooling modewind cooled

●Non-standardd customization

●Eutectic point tester

●Brand vacuum pump

●Anti-return oil device of vacuum pump

●Oil mist filter system

●Vacuum adjustment system

●Automatic backfill/drainage system

●LYO-MEGA software system

●Mobile APP monitoring system

●Backfill filter

●External bottle hanging device
