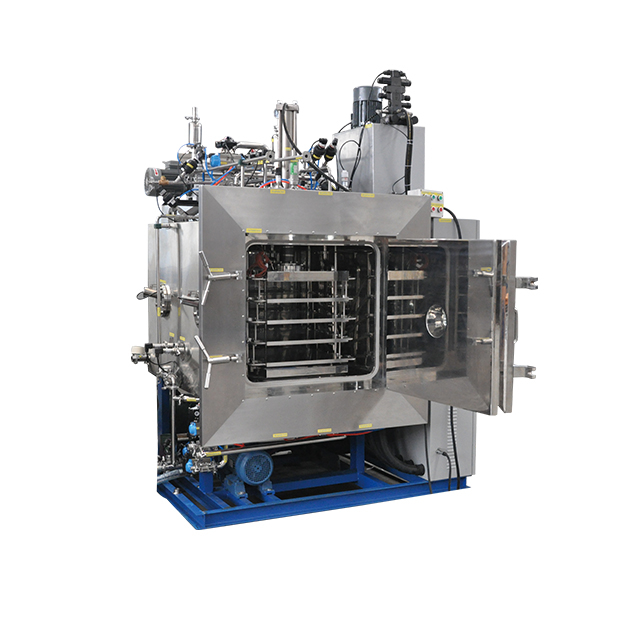

NEL 1-3GY Pharmaceutical Lyophilizer

NEL 1-3GY medical type freeze dryer series are widely used in medical field, such as blood products, vaccines, biological products, and chemical medicines, especially western medicine field.

This series models are used in many large-scale pharmaceutical factories. In terms of injections, drug quality can be improved and storage time can be delayed through freeze drying.

Availability:
Quantity:
Inquire

NEL 1-3GY medical type freeze dryer series are widely used in medical field, such as blood products, vaccines, biological products, and chemical medicines, especially western medicine field. This series models are used in many large-scale pharmaceutical factories. In terms of injections, drug quality can be improved and storage time can be delayed through freeze drying.




Features of the NEL 1-3GY medical type freeze dryer

● The shelves are  made with unique patented technology, high pressure resistance, high flatness, and good temperature uniformity.

● The cooling speed can be controlled through The freeze-drying curve optimization control technology in the pre-frozen phase, and at the same time,  the sample heating speed and the current vacuum value also can be controlled in the sublimation and analytical drying stages.

● The patented gas diversion design and control technology ,strong ice collecting capacity and high drying efficiency.

● The unique dual-channel sealing technology of the mobile + fixed dual-channel door seals sterilizes the stationary silicone rubber while steam sterilizing.

● Vacuum adjustment during drying operation to avoid foaming and blowing of special materials and improve drying efficiency.

● Industrial-grade embedded touch screen + dedicated SH-HPSC-IV modular controller, stable and reliable system, high control accuracy.

● The professionally designed LYO-CONTROL control system can save multiple sets of process . At the same time, the process can be adjusted in real time during the drying process to improve the process optimization rate.

● Flexible manual + automatic control mode, the manual for groping process, and the automatic for batch production.

● The powerful LYO-MEGA host computer control system can record and save the operating data, curves and alarm records for ten years to improve the trace ability of products; at the same time, it is convenient for observation, operation and fault diagnosis.

● User grades and passwords can be set, and operations can be decentralized to meet GMP-related requirements.

● The non-standarded can be customized as requested.






models parameters

unit

NEL-1GY

NEL-2GY

NEL-3GY

freeze drying area

m2

1.15

2.16

3.24

shipping weight （thickness 10mm）

L

10

20

30

shelf number

layer

4+1

4+1

6+1

shelf dimensions

mm

600*480

600*900

600*900

shelf spacing

mm

80

80

80

temp. range

℃

-50~+70

-50~+70

-50~+70

ice collecting capacity

kg/B

≥20

≥40

≥60

cold trap temp.

℃

≤-75

≤-75

≤-75

cooling mode

-

water cooled

water cooled

water cooled

defrosting mode

-

water soaked

water soaked

water soaked

ultimate vacuum

pa

≤1

≤1

≤1

power

kw

18

21

24

dimensions (L*W*H)

m

2500*1100*2000

2500*1300*2000

2800*1200*2500

Φ22 vials

pcs

2460

4608

6912

Φ16 vials

pcs

4788

8960

13440

overall weight

kg

1500

2600

2800

steaming water consumption

kg/h

60

80

100

inpouring water volume

l/min

60

75

90




freeze dryer

It is used for the pharmaceutical factories

This model is not only suitable for the freeze drying of bulk (liquid, pasty, solid) conventional materials, but also suitable for the drying of the vials materials. When the materials are ready for freeze-drying, they are put into in the vial, then begin freeze drying before the vial's lid unsealed. The capping device compacts the vials' lids after freeze drying to prevent secondary pollution, re-adsorb water, and facilitate long-term storage.
