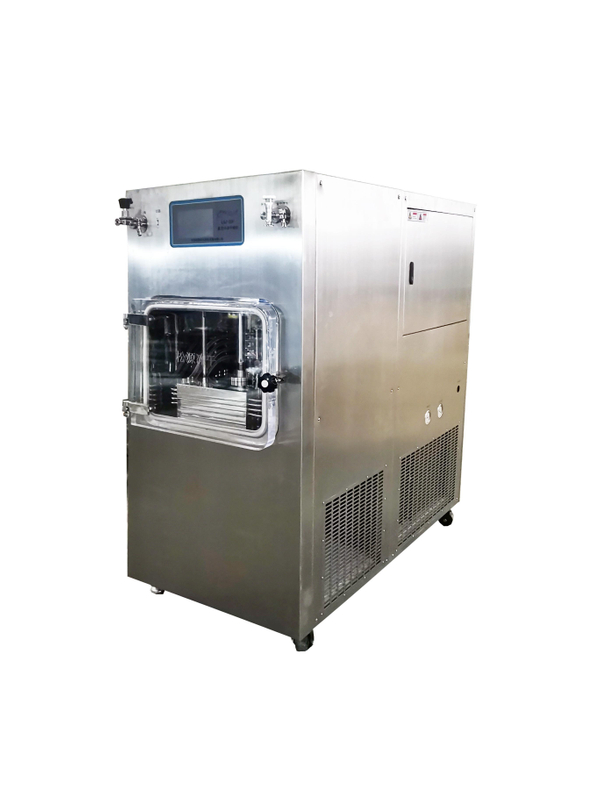

NEL-30F (silicon oil heating) freeze dryer, in situ freeze drying. It changes the tedious operation of the drying process in the past, prevents the contamination of materials, and realizes the automation of drying and sublimation.
This model has shelf heating and programmable functions, can memorize the freeze-drying curve, and has a built-in U disk extraction function, which is convenient for users to observe the freeze-drying process of materials.
With stoppering function;
Accept customization.
NEL-30F (silicon oil heating) freeze dryer, in situ freeze drying. It changes the tedious operation of the drying process in the past, prevents the contamination of materials, and realizes the automation of drying and sublimation.
This model has shelf heating and programmable functions, can memorize the freeze-drying curve, and has a built-in U disk extraction function, which is convenient for users to observe the freeze-drying process of materials.
With stoppering function;
Accept customization.
1.In-situ freeze dryer lyophilizer;
2.Insternation brand compressor,stable,low noise;
3.Shelves'temperature control accuracy high;
4.Upgraded freeze-drying curve technology;
5.7-inch true color industrial embedded touch screen + SH-HPSC-II modular controller;
6.The professionally designed FD-PILOT control system can save hundreds of sets of process recipes;
7.The intelligent data recording system records and displays the temperature curve of the cold trap, the temperature curve of the sample, and the vacuum degree curve in real time.
8.Flexible manual + automatic control mode;
9.Real-time alarm display and historical alarm query function;
10.The user level and password can be set;
1.In-situ freeze dryer lyophilizer;
2.Insternation brand compressor,stable,low noise;
3.Shelves'temperature control accuracy high;
4.Upgraded freeze-drying curve technology;
5.7-inch true color industrial embedded touch screen + SH-HPSC-II modular controller;
6.The professionally designed FD-PILOT control system can save hundreds of sets of process recipes;
7.The intelligent data recording system records and displays the temperature curve of the cold trap, the temperature curve of the sample, and the vacuum degree curve in real time.
8.Flexible manual + automatic control mode;
9.Real-time alarm display and historical alarm query function;
10.The user level and password can be set;
Model | NEL-30FY |
Trays size | 295*335mm |
Trays | 3pcs |
Shelf size | 300*340mm |
Shelf | 3+1 |
Shelf space | 70mm |
Shelves temperature range | -50℃~+70℃ |
Cold trap temperature | -75C |
Vacuum | ≤5pa |
Condenser | 6kg |
Power | 5500w |
Cooling mode | fan cooling |
Weight | 400kg |
Size | 1260×850×1420mm |
Ф12mm vials | 2187pcs |
Ф16mm vials | 1200pcs |
Ф22mm vials | 654pcs |
Model | NEL-30FY |
Trays size | 295*335mm |
Trays | 3pcs |
Shelf size | 300*340mm |
Shelf | 3+1 |
Shelf space | 70mm |
Shelves temperature range | -50℃~+70℃ |
Cold trap temperature | -75C |
Vacuum | ≤5pa |
Condenser | 6kg |
Power | 5500w |
Cooling mode | fan cooling |
Weight | 400kg |
Size | 1260×850×1420mm |
Ф12mm vials | 2187pcs |
Ф16mm vials | 1200pcs |
Ф22mm vials | 654pcs |
●Non-standard customization;
●Eutectic point tester
●Freeze-drying endpoint judgment function
●Brand vacuum pump;
●Anti-return oil device of vacuum pump
●Oil mist filter system
●Vacuum regulation system
●LYO-MEGA software system
●Mobile APP monitoring system
●Data Logger
●Backfill filter
●Automatic backfill and drainage control system
●External bottle hanging device
●Non-standard customization;
●Eutectic point tester
●Freeze-drying endpoint judgment function
●Brand vacuum pump;
●Anti-return oil device of vacuum pump
●Oil mist filter system
●Vacuum regulation system
●LYO-MEGA software system
●Mobile APP monitoring system
●Data Logger
●Backfill filter
●Automatic backfill and drainage control system
●External bottle hanging device
