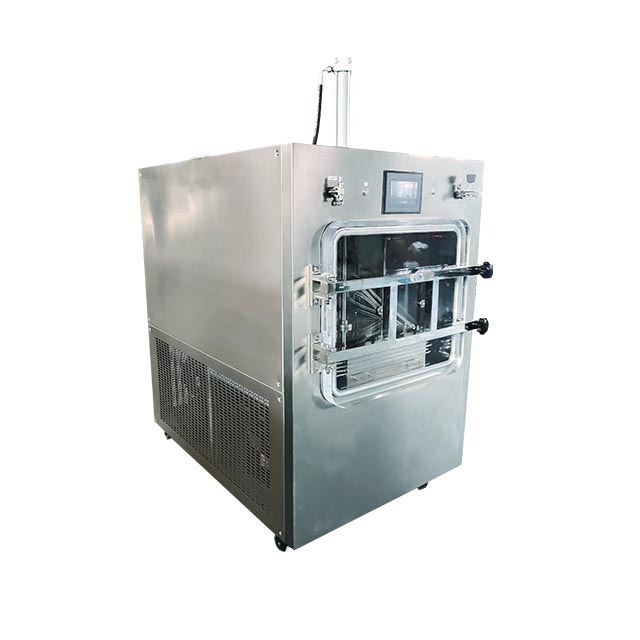

NEL-100FY Top Press Type Silicon Oil Heating Freeze Dryer

This NEL-100F Top Press Type Silicon Oil Heating Lyophilizer Freeze Dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc.

Availability:
Quantity:

This NEL-100FY Top Press Type Experimental Freeze Dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process,a long term preservation is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.



Freezing and drying process of NEL-100F (silicon oil heating)  are finished in the same place (patented product). It changes the cumbersome operation of the drying process in the past, prevents the contamination of materials, and realized dry sublimation automatically. The model is equipped with shelf heating and has programmable functions. It can memorize freeze-dried curves for users to observe the lyophilization process of materials.




Model

NEL-100F

freeze drying area

1.15㎡

shelf numbers

4+1pcs

shelf spacing

70mm

shelf temp. range

-55℃~+70℃

cold trap temp.

≤-75℃

ice collecting capacity

≥15KG/24h

ultimate speed

≤5pa

power

7500w




freeze dryer

This model is not only suitable for the freeze drying of bulk (liquid, pasty, solid) conventional materials, but also suitable for the drying of the vials materials. When the materials are ready for freeze-drying, they are put into in the vial, then begin freeze drying before the vial's lid unsealed. The capping device compacts the vials' lids after freeze drying to prevent secondary pollution, re-adsorb water, and facilitate long-term storage.


·eutectic point tester

·Freeze drying finished judgment function

·imported vacuum pump

·vacuum pump anti-returned oil device

·oil mist filter system

·Mobile phone APP monitoring system

·LYO-MEGA Software System

·data recorder

·backfill filter

·Automatic backfill and drainage control system

·Capacitance vacuum gauge

·External hanging bottle device

·non-standard customized
