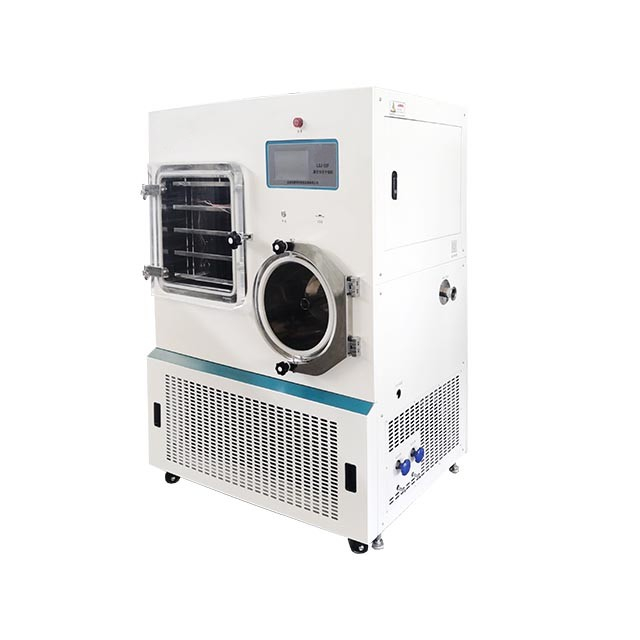

NEL-50F Standard Type Silicon Oil Heating Freeze Dryer

This NEL-50F Standard Type Silicon Oil Heating Freeze Dryer is 0.7m² drying area,

Condenser capacity:10kg

Cold trap:-75℃

Availability:
Quantity:

This NEL-50F Standard Type Experimental Freeze Dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process,a long term preservation is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.



Freezing and drying process of NEL-50F (silicon oil heating)  are finished in the same place (patented product). It changes the cumbersome operation of the drying process in the past, prevents the contamination of materials, and realized dry sublimation automatically. The model is equipped with shelf heating and has programmable functions. It can memorize freeze-dried curves and comes with u-disc extraction function for users to observe the lyophilization process of materials.


Model

NEL-50F

freeze drying area

0.7㎡

tray dimensions

475×355mm

tray numbers

4pcs

shelf dimensions

480×360mm

shelf layers

4+1pcs

shelf spacing

50mm

shelf temp. range

-55℃~+70℃

shelf accuracy

±1℃

cold trap temp.

≤-75℃

ice collecting capacity

≥10KG/24h

pumping speed

8L/S

ultimate vacuum

≤5pa

power

5500w

main unit weight

600kg

main unit dimensions

1000×785×1420mm

cooling mode

wind cooled

bulk capacity

7L(thickness 10mm)


freeze dryer

Suitable for freeze drying of bulk (liquid, pasty, solid) conventional materials.


·eutectic point tester

·freeze drying finished judgement function

·imported vacuum pump

·vacuum pump anti-returned oil device

·oil mist filter system

·Vacuum adjustment system

·LYO-MEGA Software System

·Mobile phone APP monitoring system

·data recorder

·backfill filter

·Automatic backfill and drainage control system

·External hanging bottle device

·non-standard customized
