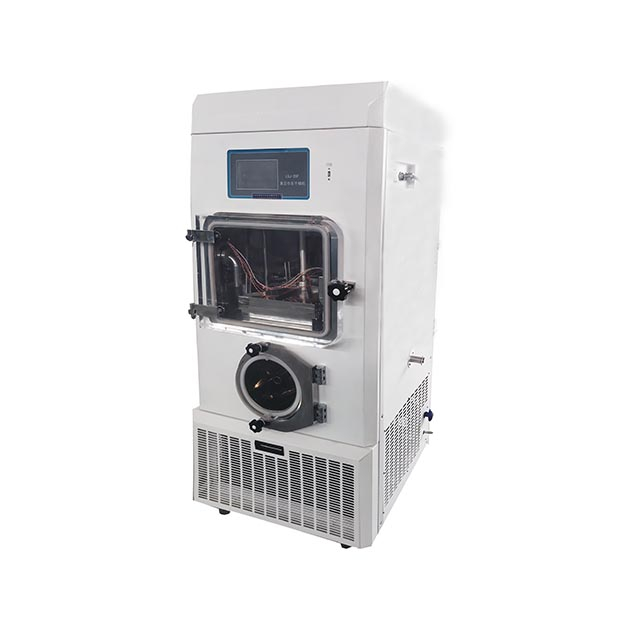

NEL-20FY Silicon Oil Heating Freeze Dryer With Stoopering

This NEL-20FY Silicon Oil Heating Freeze Dryer With Stoppering function is most used for research and exploration of freeze-drying technology process or small production

0.2m² drying area; condenser:6kg;

Vials: Ф12mm 1554 pcs; Ф16mm 868pcs; Ф22mm 440pcs;

Availability:
Quantity:

This NEL-20FY Silicon Oil Heating Freeze Dryer With Stoppering is designed for advanced research institutes and professional laboratory that need precise control of the lyophilization process;

It helps the investigators to boost their freeze drying technology study to get the related documentation practices and data acquisition,and prepare for the future mass production.

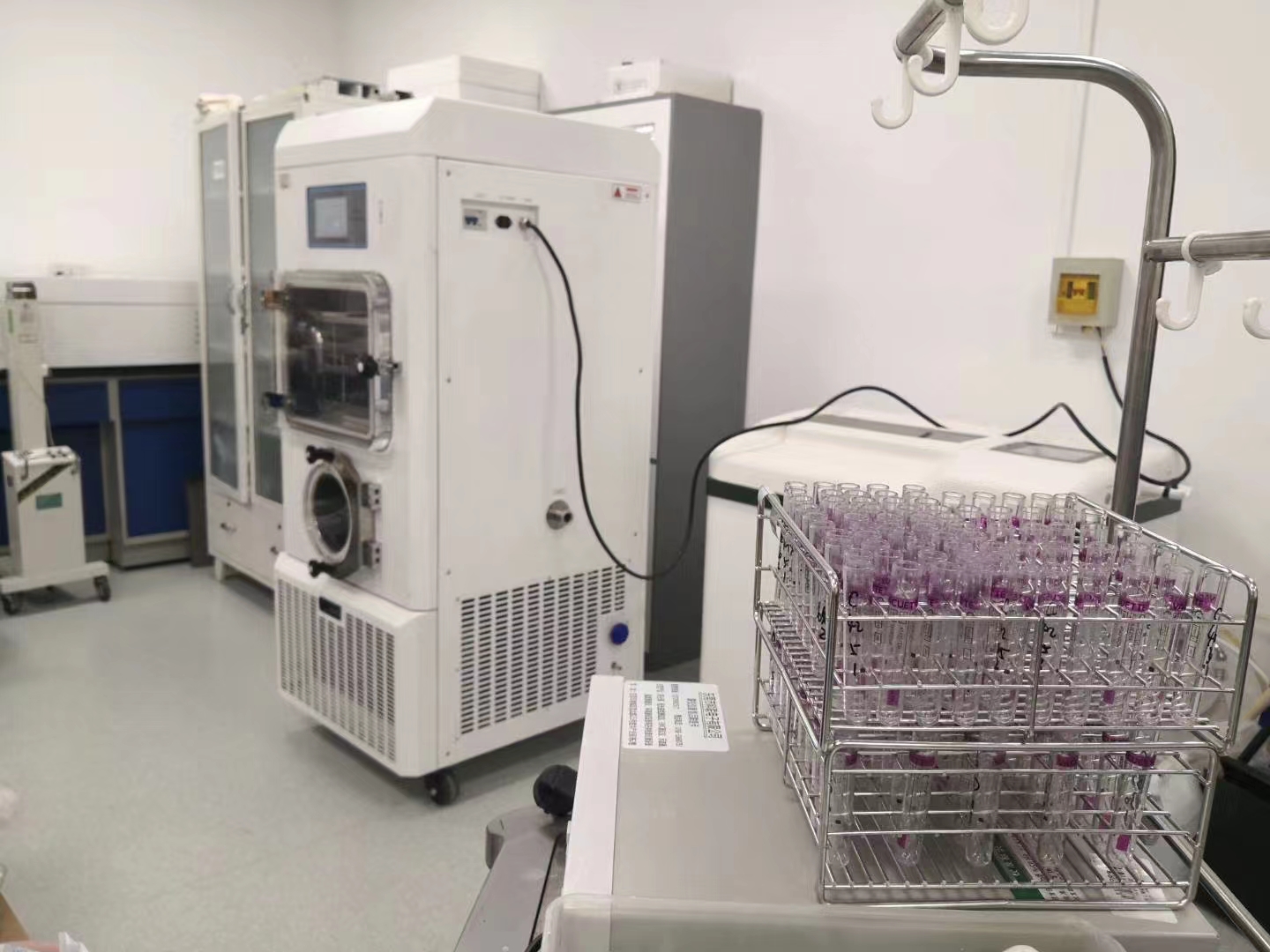

LGJ-20F

freeze dryer

This model is not only suitable for the freeze drying of bulk (liquid, pasty, solid) conventional materials, but also suitable for the drying of the vials materials. When the materials are ready for freeze-drying, they are put into in the vial, then begin freeze drying before the vial's lid unsealed. The capping device compacts the vials' lids after freeze drying to prevent secondary pollution, re-adsorb water, and facilitate long-term storage.


Model

NEL-20FY

freeze drying area

0.2㎡

tray numbers

2pcs

shelf spacing

70mm

shelf temp. range

-50℃~+70℃

cold trap temp.

≤-75℃

ice collecting capacity

≥6KG/24h

ultimate speed

≤5pa

power

3000w

main unit weight

300kg

main unit dimensions

840×750×1580mm

cooling mode

fan cooling

vials capacity

Ф12mm:1554pcs

Ф16mm:868pcs

Ф22mm:440pcs


·eutectic point tester

·Freeze drying finished judgment function

·imported vacuum pump

·vacuum pump anti-returned oil device

·oil mist filter system

·Mobile phone APP monitoring system

·LYO-MEGA Software System

·data recorder

·backfill filter

·Automatic backfill and drainage control system

·External hanging bottle device

·non-standard customized
