1L rotary evaporator is an indispensable instrument for evaporation, concentration, crystallization, drying, separation and solvent recovery in the research and production of medicine, chemical and biological products.
Availability: | |
---|---|
Quantity: | |
Brief Introduction of the 1L rotary evaporator
RE-52C rotary evaporator is mainly used in the concentration, crystallization, drying, separation and solvent recovery of pharmaceutical, chemical and biological pharmaceutical industries. Its principle is: under vacuum condition, constant temperature heating makes the rotary bottle rotate at constant speed, and the material forms large area film on the bottle wall, so it can be evaporated efficiently. The solvent evaporation is cooled by the high-efficiency glass condenser and recovered in the collecting bottle, so as to greatly improve the evaporation efficiency. The utility model is especially suitable for concentrating and purifying biological articles with high temperature and easy decomposition and degeneration.
1L rotary evaporator is an indispensable instrument for evaporation, concentration, crystallization, drying, separation and solvent recovery in the research and production of medicine, chemical and biological products. The rotary evaporator is developed under the condition of vacuum and negative pressure, using the principle of constant temperature heating and thin film evaporation. Rotary evaporator with stepless rotation of the glass bottle rotating at a constant speed, the material is formed large area uniform film on the bottle wall, then the intelligent thermostatic water bath for rotating the bottle uniformly heated at high speed under the condition of vacuum evaporation, solvent vapor by high performance glass condenser cooling, recycling in collecting bottle. Rotary evaporator is working under vacuum, and all material contact part adopts the high temperature resistant borosilicate glass and Teflon material, concentrated especially suitable for biological products of high temperature easy decomposition degeneration and purification. The factory set rotary evaporator essence of similar products at home and abroad, in successful practice, has formed 1L,2L, 5L, 10L, 20L, 30L,50L, 100L series, efficient and practical, follow the economic principles of product design, all for the sake of users.
Brief Introduction of the 1L rotary evaporator
RE-52C rotary evaporator is mainly used in the concentration, crystallization, drying, separation and solvent recovery of pharmaceutical, chemical and biological pharmaceutical industries. Its principle is: under vacuum condition, constant temperature heating makes the rotary bottle rotate at constant speed, and the material forms large area film on the bottle wall, so it can be evaporated efficiently. The solvent evaporation is cooled by the high-efficiency glass condenser and recovered in the collecting bottle, so as to greatly improve the evaporation efficiency. The utility model is especially suitable for concentrating and purifying biological articles with high temperature and easy decomposition and degeneration.
1L rotary evaporator is an indispensable instrument for evaporation, concentration, crystallization, drying, separation and solvent recovery in the research and production of medicine, chemical and biological products. The rotary evaporator is developed under the condition of vacuum and negative pressure, using the principle of constant temperature heating and thin film evaporation. Rotary evaporator with stepless rotation of the glass bottle rotating at a constant speed, the material is formed large area uniform film on the bottle wall, then the intelligent thermostatic water bath for rotating the bottle uniformly heated at high speed under the condition of vacuum evaporation, solvent vapor by high performance glass condenser cooling, recycling in collecting bottle. Rotary evaporator is working under vacuum, and all material contact part adopts the high temperature resistant borosilicate glass and Teflon material, concentrated especially suitable for biological products of high temperature easy decomposition degeneration and purification. The factory set rotary evaporator essence of similar products at home and abroad, in successful practice, has formed 1L,2L, 5L, 10L, 20L, 30L,50L, 100L series, efficient and practical, follow the economic principles of product design, all for the sake of users.
1, the main stent adopts antiseptic spraying + aluminum alloy. The structure is reasonable and the materials are exquisite.
2, the sealing system adopts PTFE and imported fluorine rubber combination seal, can maintain high vacuum.

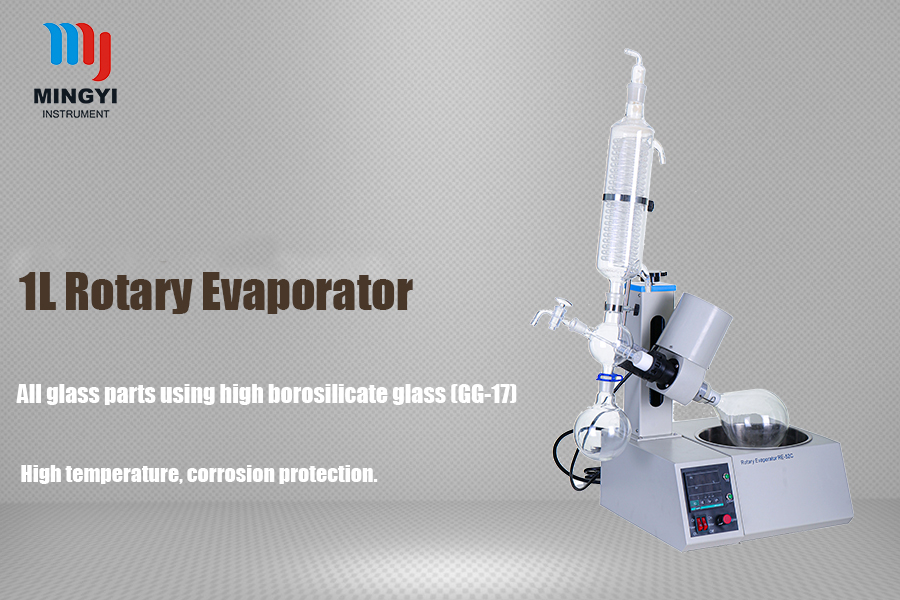

3, all glass parts using high borosilicate glass (GG-17), high temperature, corrosion protection.
4, continuous feeding is convenient for customers to use, the valve type feeding pipe is sheathed with tetrafluoroethylene tube.

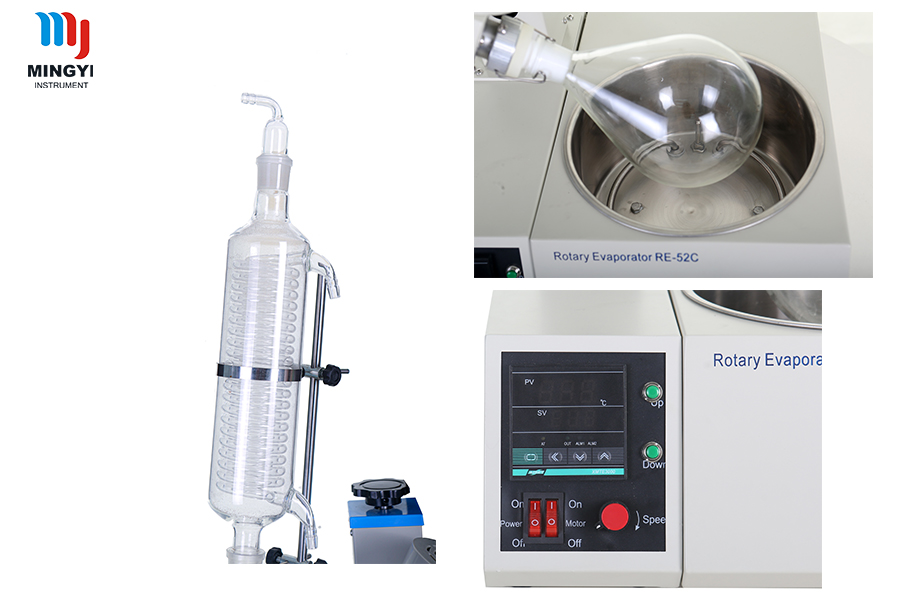

5, vertical double coil coil condenser, ensure high recovery, additional tubes.
6 、 microcomputer ON-OFF power switch control.
7, bath pot digital display, intelligent constant temperature control, Cu50 type sensor fast and accurate delivery temperature.
8, electronic stepless speed regulation (0-120rpm), spin setting, easy to operate.
9 fuse safety protection.
10, the pot adopts high quality stainless steel, corrosion resistant and durable.
11, micro motor drive, automatic lifting of the host.
1, the main stent adopts antiseptic spraying + aluminum alloy. The structure is reasonable and the materials are exquisite.
2, the sealing system adopts PTFE and imported fluorine rubber combination seal, can maintain high vacuum.
3, all glass parts using high borosilicate glass (GG-17), high temperature, corrosion protection.
4, continuous feeding is convenient for customers to use, the valve type feeding pipe is sheathed with tetrafluoroethylene tube.
5, vertical double coil coil condenser, ensure high recovery, additional tubes.
6 、 microcomputer ON-OFF power switch control.
7, bath pot digital display, intelligent constant temperature control, Cu50 type sensor fast and accurate delivery temperature.
8, electronic stepless speed regulation (0-120rpm), spin setting, easy to operate.
9 fuse safety protection.
10, the pot adopts high quality stainless steel, corrosion resistant and durable.
11, micro motor drive, automatic lifting of the host.
Basic parameter | Model | RE-52A |
Glass material | GG-17 | |
Holder material | Spray corrosion | |
Pot material | Spray corrosion 250*365*150mm | |
Pot guts Material | Stainless steel 240*120mm | |
Rotating bottle volume | 1L 24# standard port | |
Collection bottle volume | 0.5L 24# standard port | |
Vacuum | 0.098Mpa | |
Rotary power | 30W | |
Rotary speed | 0-120rpm | |
Heating power | 1KW | |
Heating bath temp. range | 0-99℃ | |
Temp. control accuracy | ±1℃ | |
Lifting stroke | 120mm | |
Voltage(V/Hz) | 220V/50Hz | |
Size (mm*mm*mm) | 700*440*1005 | |
Packing size (mm*mm*mm) | 590*460*460 0.12方 | |
G.W(KG) | 21 | |
Function | Speed mode | Electronic variable speed |
Temp. display | CU50 sensor digital display | |
Temp. control mode | Intelligent temperature control | |
Sealing method | Tetrafluoroethylene seal assembly | |
Condenser | Vertical condenser 85 * 460mm 29 # standard port | |
Lifting mode | Manual lifting | |
Continuous feed | 19 # standard port feed valve | |
Optional | Splash device | Bath was supporting transparent cover |
Heating bath temperature range | 0-400℃ | |
Detail request we can customize as customer request |
Basic parameter | Model | RE-52A |
Glass material | GG-17 | |
Holder material | Spray corrosion | |
Pot material | Spray corrosion 250*365*150mm | |
Pot guts Material | Stainless steel 240*120mm | |
Rotating bottle volume | 1L 24# standard port | |
Collection bottle volume | 0.5L 24# standard port | |
Vacuum | 0.098Mpa | |
Rotary power | 30W | |
Rotary speed | 0-120rpm | |
Heating power | 1KW | |
Heating bath temp. range | 0-99℃ | |
Temp. control accuracy | ±1℃ | |
Lifting stroke | 120mm | |
Voltage(V/Hz) | 220V/50Hz | |
Size (mm*mm*mm) | 700*440*1005 | |
Packing size (mm*mm*mm) | 590*460*460 0.12方 | |
G.W(KG) | 21 | |
Function | Speed mode | Electronic variable speed |
Temp. display | CU50 sensor digital display | |
Temp. control mode | Intelligent temperature control | |
Sealing method | Tetrafluoroethylene seal assembly | |
Condenser | Vertical condenser 85 * 460mm 29 # standard port | |
Lifting mode | Manual lifting | |
Continuous feed | 19 # standard port feed valve | |
Optional | Splash device | Bath was supporting transparent cover |
Heating bath temperature range | 0-400℃ | |
Detail request we can customize as customer request |
Basic parameter | Model | RE-52C |
Glass material | GG-17 | |
Holder material | Spray corrosion | |
Pot material | Spray corrosion 250*365*150mm | |
Pot guts Material | Stainless steel 240*120mm | |
Rotating bottle volume | 1L 24# standard port | |
Collection bottle volume | 0.5L 24# standard port | |
Vacuum | 0.098Mpa | |
Rotary power | 30W | |
Rotary speed | 0-120rpm | |
Heating power | 1KW | |
Heating bath temp. range | 0-99℃ | |
Temp. control accuracy | ±1℃ | |
Lifting stroke | 120mm | |
Voltage(V/Hz) | 220V/50Hz | |
Size (mm*mm*mm) | 700*440*1005 | |
Packing size (mm*mm*mm) | 590*460*460 0.12m2 | |
G.W(KG) | 21 | |
Function | Speed mode | Electronic variable speed |
Temp. display | CU50 sensor digital display | |
Temp. control mode | Intelligent temperature control | |
Sealing method | Tetrafluoroethylene seal assembly | |
Condenser | Vertical condenser 85 * 460mm 29 # standard port | |
Lifting mode | Host automatic lifting | |
Continuous feed | 19 # standard port feed valve | |
Optional | Splash device | Bath was supporting transparent cover |
Heating bath temperature range | 0-400℃ | |
Detail request we can customize as customer request |
Basic parameter | Model | RE-52C |
Glass material | GG-17 | |
Holder material | Spray corrosion | |
Pot material | Spray corrosion 250*365*150mm | |
Pot guts Material | Stainless steel 240*120mm | |
Rotating bottle volume | 1L 24# standard port | |
Collection bottle volume | 0.5L 24# standard port | |
Vacuum | 0.098Mpa | |
Rotary power | 30W | |
Rotary speed | 0-120rpm | |
Heating power | 1KW | |
Heating bath temp. range | 0-99℃ | |
Temp. control accuracy | ±1℃ | |
Lifting stroke | 120mm | |
Voltage(V/Hz) | 220V/50Hz | |
Size (mm*mm*mm) | 700*440*1005 | |
Packing size (mm*mm*mm) | 590*460*460 0.12m2 | |
G.W(KG) | 21 | |
Function | Speed mode | Electronic variable speed |
Temp. display | CU50 sensor digital display | |
Temp. control mode | Intelligent temperature control | |
Sealing method | Tetrafluoroethylene seal assembly | |
Condenser | Vertical condenser 85 * 460mm 29 # standard port | |
Lifting mode | Host automatic lifting | |
Continuous feed | 19 # standard port feed valve | |
Optional | Splash device | Bath was supporting transparent cover |
Heating bath temperature range | 0-400℃ | |
Detail request we can customize as customer request |
