30L Rotary Evaporator

Main Features of the RE-3002 rotary evaporator

1. The main frame of stainless steel and aluminum alloy

2. Polytetrafluoroethylene and imported fluororubber combined seal

3. The real-time display of the vacuum is up to 0.098Mpa

4. GG-17 glass,High temperature resistance, anticorrosion

5. Continuous feed

Availability:
Quantity:

30L rotary evaporator

Brief Introduction of the 30L rotary  evaporator

30L rotary evaporator is a common laboratory equipment. It's consisted with motors, distillation flask, heating pots, receiving flask, condensers and so on. This device is mainly used for continuous distillation experiments under vacuum conditions. Our company designed 10L, 20L, 30L ,50L medium vacuum rotary vacuum evaporator for users to choose. The structure is as follows.

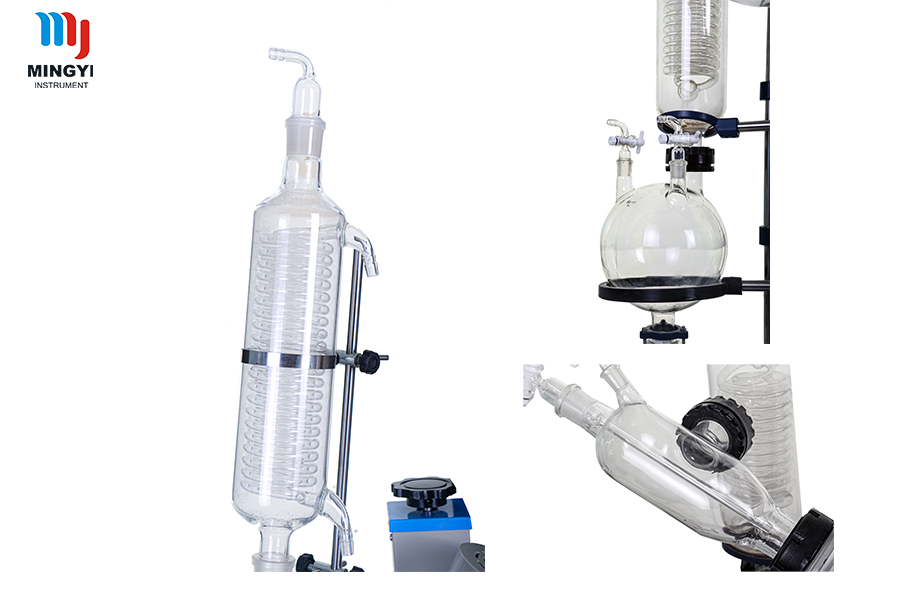

30L rotary evaporator

Main Features of the RE-3002 rotary vacuum evaporator

1. The main frame of stainless steel and aluminum alloy

2. Polytetrafluoroethylene and imported fluororubber combined seal

3. The real-time display of the vacuum is up to 0.098Mpa

4. GG-17 glass,High temperature resistance, anticorrosion

5. Continuous feed

6. Main cooling and cooling double condenser

7. Microcomputer based ON-OFF power switch control

8. Digital display of bath pot and intelligent constant temperature control

9 .Frequency conversion speed control (0-120rpm), digital display

10. Bath pot manual lifting


Basic parameter

Model

RE-3002

Glass material

GG-17

Holder material

Stainless steel

Pot material

Spray corrosion  710*620*700mm

Pot guts Material

Stainless steel    500*280mm

Plate size

804*574mm

Rotary bottle volume

30L    ¢125 Flanged

Collective bottle volume

20L    ¢60 Flanged

Vacuum

0.098Mpa

Rotary power

180W

Rotary speed

0-110rpm

Heating power

8KW

Bath temp. range

0-400℃

Temp. control accuracy

±1℃

Voltage(V/Hz)

220V/50Hz

Lifting stroke

180mm

Size (mm*mm*mm)

1520*620*2470

Packing size(mm*mm*mm)

1450*390*440  1150*840*660  790*730*790 1.34 cubic

Gross weight(KG)

170

  Function

Speed mode

Frequency Control

Speed display

Digital display6

Temp. control mode

K type sensor digital display

Temp. control

Intelligent temperature control

Sealing method

Tetrafluoroethylene seal assembly

Condenser

Vertical efficiency three reflux condenser, main condenser 120 * 640, 135 * 470 pay cold

Continuous collection

Valve control

Lifting mode

Manual lifting bath pot

Temperature measuring device

19# standard port

Continuous feed

40 # standard port feed valve

Discharge mode

Tetrafluoroethylene discharge valve,                  ¢ 60 flanged

Vacuum display

Vacuum table

 Optional

Lifting mode

Automatic lifting

Collective mode

Double collective bottle

Explosion proof

Proof inverter, explosion-proof motor EX180W

Frame portion

Spray or spray tetrafluoroethylene

Bath material

304 stainless steel
