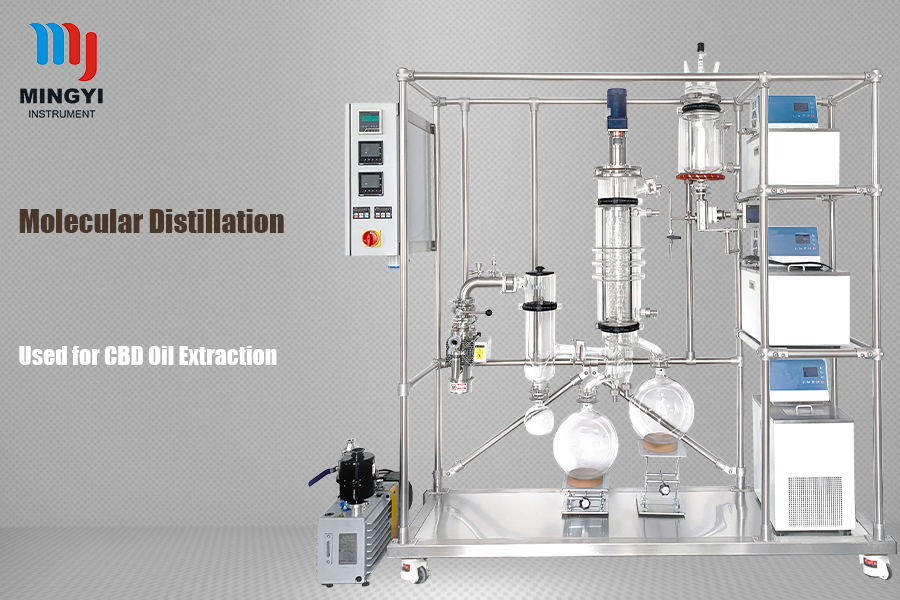

Short-path Molecular distillation

This short-path Molecular distillationhas the following advantages:

1. High evaporation efficiency, reducing retention time; with minimal time delay;

2. The high precision glass tube allows the liquid to form a complete integrated film on the heated surface;

3. The MD molecular distillation system consists of borosilicate glass and PTFE and SS316L, so it has excellent corrosion resistance;

4. The stirring motor system adopts magnetic stirring system, no noise, higher stirring speed and faster film forming speed;

5. The squeegee film forming system is made of PTFE material and 316L, which has higher corrosion resistance;

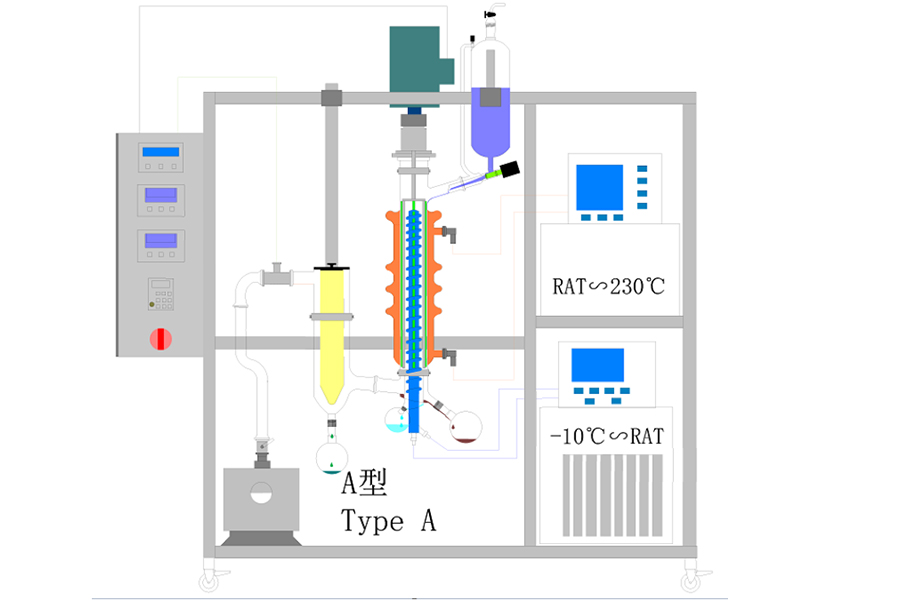

6, the system's maximum temperature can reach 230 ° C;

7. The PTFE scraper is closely attached to the inner wall of the evaporation, and a film is formed on the evaporation surface by the rotary squeegee to improve the evaporation efficiency and reduce the operation time;

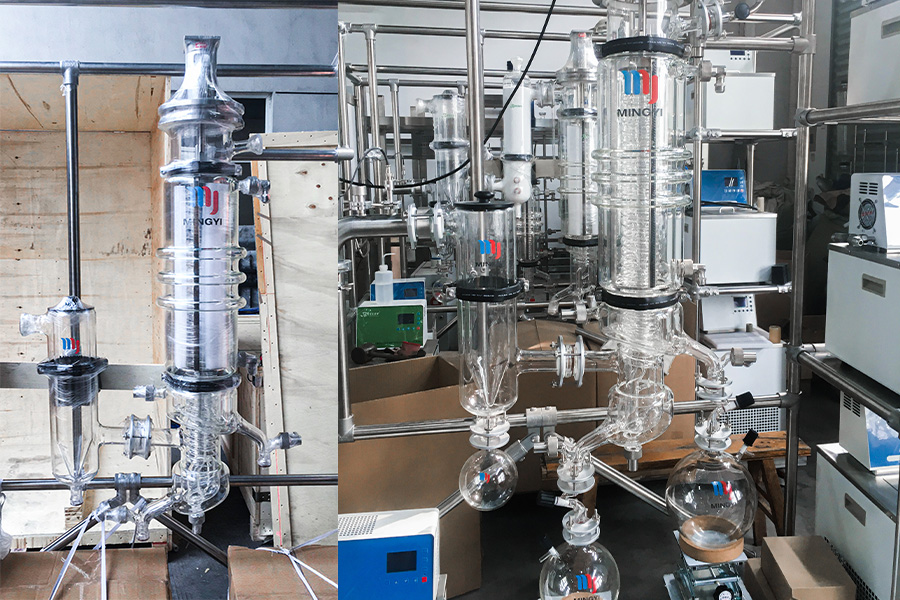

8. The whole evaporator is made of high borosilicate glass, which can clearly observe the operation of the whole process;

The heating method can be changed according to actual needs: heating of the ceramic ring to achieve heating temperature: room temperature - 350 ° C;

The all-package distiller can be modified by changing the distillation as needed: the feed pipe is heated, and the heavy components and light components are thermostated.
