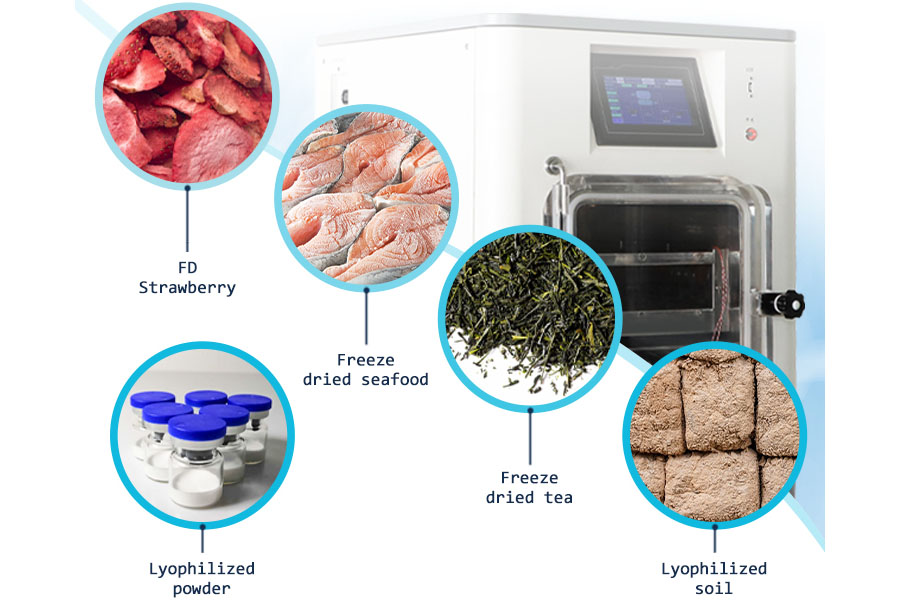

This NEL-10FD Electric Heating Freeze Dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc.
Availability: | |
---|---|
Quantity: | |
Brief Introduction of the NEL-10FD Electric Heating Freeze Dryer
NEL-10FD Electric Heating Freeze Dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process,a long term preservation is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.
Freezing and drying process of NEL-10FD (electric heating) are finished in the same place (patented product). It changes the cumbersome operation of the drying process in the past, prevents the contamination of materials, and realized dry sublimation automatically. The model is equipped with shelf heating and has programmable functions. It can memorize freeze-dried curves and comes with u-disc extraction function for users to observe the lyophilization process of materials.
This NEL-10FD Standard Type Experimental Freeze Dryer is especially suitable for the freeze-drying of Cordyceps sinensis
Brief Introduction of the NEL-10FD Electric Heating Freeze Dryer
NEL-10FD Electric Heating Freeze Dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process,a long term preservation is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.
Freezing and drying process of NEL-10FD (electric heating) are finished in the same place (patented product). It changes the cumbersome operation of the drying process in the past, prevents the contamination of materials, and realized dry sublimation automatically. The model is equipped with shelf heating and has programmable functions. It can memorize freeze-dried curves and comes with u-disc extraction function for users to observe the lyophilization process of materials.
This NEL-10FD Standard Type Experimental Freeze Dryer is especially suitable for the freeze-drying of Cordyceps sinensis
NEL-10FD Electric Heating Freeze Dryer Suitable for freeze drying of bulk (liquid, pasty, solid) conventional materials.
NEL-10FD Electric Heating Freeze Dryer Suitable for freeze drying of bulk (liquid, pasty, solid) conventional materials.
Model | NEL-10FD standard type |
Freeze drying area | 0.2㎡ |
Shelf dimensions | 400×270mm |
Tray dimensions | 395×265mm |
Tray numbers | 2pcs |
Shelf spacing | 70mm |
Shelf temp. range | -50℃~+70℃ |
Cold trap temp. | ≤-60℃,optional ≤-80℃ |
Ice collecting capacity | ≥6KG/24h |
Pumping speed | 4L/S |
Ultimate vacuum | ≤5pa |
Power | 2000w |
Main unit weight | 210kg |
Main unit dimensions | 655×640×1200mm |
Cooling mode | wind cooled |
Shipping weight | 2L(thickness 10mm) |
Model | NEL-10FD standard type |
Freeze drying area | 0.2㎡ |
Shelf dimensions | 400×270mm |
Tray dimensions | 395×265mm |
Tray numbers | 2pcs |
Shelf spacing | 70mm |
Shelf temp. range | -50℃~+70℃ |
Cold trap temp. | ≤-60℃,optional ≤-80℃ |
Ice collecting capacity | ≥6KG/24h |
Pumping speed | 4L/S |
Ultimate vacuum | ≤5pa |
Power | 2000w |
Main unit weight | 210kg |
Main unit dimensions | 655×640×1200mm |
Cooling mode | wind cooled |
Shipping weight | 2L(thickness 10mm) |
