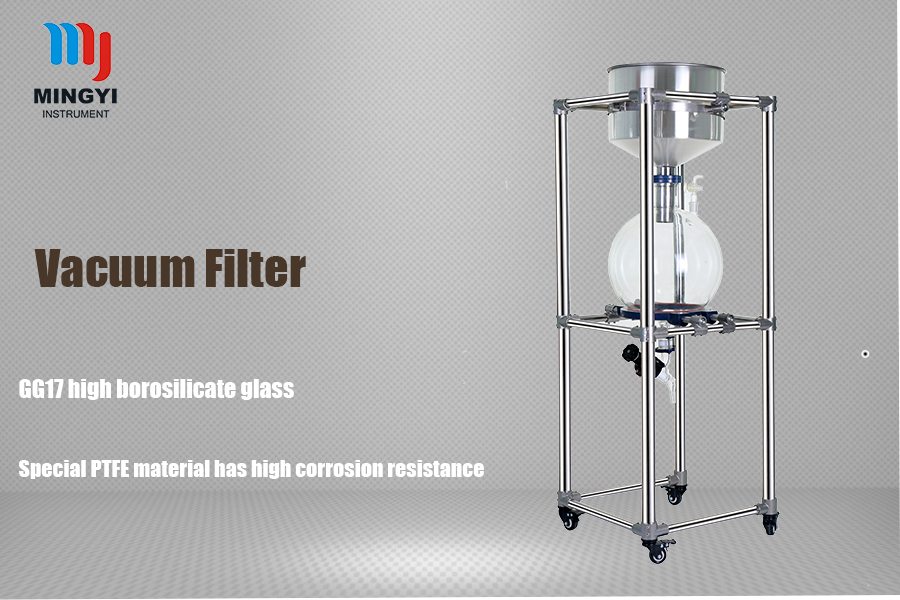

The filter flask of the vacuum filter is made of GG17 high borosilicate glass, which is mainly used for liquid-liquid extraction, and can also be used for reactions at room temperature
| Availability: | |
|---|---|
| Quantity: | |
The filter flask of the vacuum filter is made of GG17 high borosilicate glass, which is mainly used for liquid-liquid extraction, and can also be used for reactions at room temperature
The filter flask of the vacuum filter is made of GG17 high borosilicate glass, which is mainly used for liquid-liquid extraction, and can also be used for reactions at room temperature
Features of the Vacuum Filter：

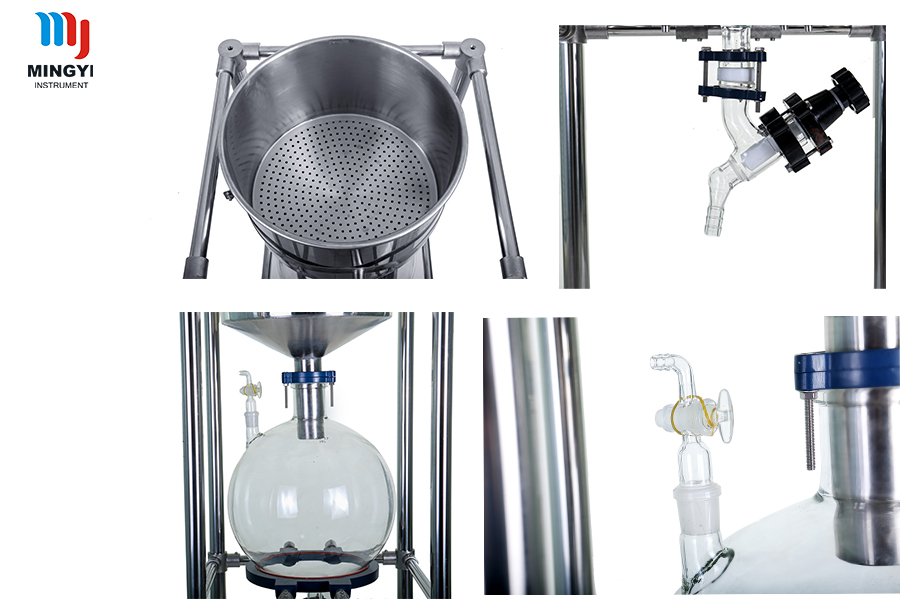

1. The suction filter bottle is made of GG17 high borosilicate glass, and the stainless steel funnel has excellent physical and chemical properties.
3. The mixed plug designed with special PTFE material has high corrosion resistance and high cost performance.
4. The lower discharge port is equipped with a specially designed PTFE valve with a glass flange. There is no dead corner in the container, it can be disassembled to facilitate the discharge of solid materials.
5. The whole machine has good sealing performance, and the static negative pressure can reach below 0.095MPa.
6. The structure of the whole machine is scientific, the visual features are outstanding, and it is practical and novel. The frame is made of 304 stainless steel and has casters for easy movement.
Features of the Vacuum Filter：
1. The suction filter bottle is made of GG17 high borosilicate glass, and the stainless steel funnel has excellent physical and chemical properties.
3. The mixed plug designed with special PTFE material has high corrosion resistance and high cost performance.
4. The lower discharge port is equipped with a specially designed PTFE valve with a glass flange. There is no dead corner in the container, it can be disassembled to facilitate the discharge of solid materials.
5. The whole machine has good sealing performance, and the static negative pressure can reach below 0.095MPa.
6. The structure of the whole machine is scientific, the visual features are outstanding, and it is practical and novel. The frame is made of 304 stainless steel and has casters for easy movement.
Model | ZF-20L |
Glass material | GG-17 |
Frame material | stainless steel |
Fitting material | 304 stainless steel |
Move method | Universal caster with brake |
Reaction flask volume | Spherical 20L |
Funnel size (mm*mm) | Φ350*220（height） |
Funnel material | stainless steel |
Number of reaction bottles | Three ports |
The discharge port is above the ground (mm) | 450 |
Suction port | ￠80 flange port |
Air extraction device | 24# standard port piston valve |
Feeding method | Glass discharge valve, ￠80 flange port |
Dimensions (mm*mm*mm) | 490*490*1600 |
Net weight (KG) | 27 |
Packing size (mm*mm*mm) | 1650*540*540 |
Packing weight (KG) | 50 |
Model | ZF-30L |
Glass material | GG-17 |
Frame material | stainless steel |
Fitting material | 304 stainless steel |
Move method | Universal caster with brake |
Reaction flask volume | Spherical 30L |
Funnel size (mm*mm) | Φ450*250(height) |
Funnel material | stainless steel |
Number of reaction bottles | Three ports |
The discharge port is above the ground (mm) | 450 |
Suction port | ￠80 flange port |
Air extraction device | 24# standard port piston valve |
Feeding method | Glass discharge valve, ￠80 flange port |
Dimensions (mm*mm*mm) | 500*520*1330 |
Net weight(kg) | 35 |
Packing size (mm*mm*mm) | 1470*620*700 |
Packing weight (KG) | 64 |
Model | ZF-50L |
Glass material | GG-17 |
Frame material | stainless steel |
Fitting material | 304 stainless steel |
Move method | Universal caster with brake |
Reaction flask volume | Spherical 50L |
Funnel size (mm*mm) | φ450*250（height） |
Funnel material | stainless steel |
Number of reaction bottles | Three ports |
The discharge port is above the ground (mm) | 450 |
Suction port | ￠80 flange port |
Air extraction device | 24# standard port piston valve |
Feeding method | Glass discharge valve, ￠80 flange port |
Dimensions (mm*mm*mm) | 580*600*1530 |
Net weight(kg) | 38 |
Packing size (mm*mm*mm) | 1470*620*700 |
Packing weight (KG) | 67 |
Model | ZF-100L |
Glass material | GG-17 |
Frame material | stainless steel |
Fitting material | 304 stainless steel |
Move method | Universal caster with brake |
Reaction flask volume | Spherical 100L |
Funnel size (mm*mm) | Φ550×320（height） |
Funnel material | stainless steel |
Number of reaction bottles | Three ports |
The discharge port is above the ground (mm) | 450 |
Suction port | ￠80 flange port |
Air extraction device | 24# standard port piston valve |
Feeding method | Glass discharge valve, ￠80 flange port |
Dimensions (mm*mm*mm) | 720×750×1850mm |
Model | ZF-20L |
Glass material | GG-17 |
Frame material | stainless steel |
Fitting material | 304 stainless steel |
Move method | Universal caster with brake |
Reaction flask volume | Spherical 20L |
Funnel size (mm*mm) | Φ350*220（height） |
Funnel material | stainless steel |
Number of reaction bottles | Three ports |
The discharge port is above the ground (mm) | 450 |
Suction port | ￠80 flange port |
Air extraction device | 24# standard port piston valve |
Feeding method | Glass discharge valve, ￠80 flange port |
Dimensions (mm*mm*mm) | 490*490*1600 |
Net weight (KG) | 27 |
Packing size (mm*mm*mm) | 1650*540*540 |
Packing weight (KG) | 50 |
Model | ZF-30L |
Glass material | GG-17 |
Frame material | stainless steel |
Fitting material | 304 stainless steel |
Move method | Universal caster with brake |
Reaction flask volume | Spherical 30L |
Funnel size (mm*mm) | Φ450*250(height) |
Funnel material | stainless steel |
Number of reaction bottles | Three ports |
The discharge port is above the ground (mm) | 450 |
Suction port | ￠80 flange port |
Air extraction device | 24# standard port piston valve |
Feeding method | Glass discharge valve, ￠80 flange port |
Dimensions (mm*mm*mm) | 500*520*1330 |
Net weight(kg) | 35 |
Packing size (mm*mm*mm) | 1470*620*700 |
Packing weight (KG) | 64 |
Model | ZF-50L |
Glass material | GG-17 |
Frame material | stainless steel |
Fitting material | 304 stainless steel |
Move method | Universal caster with brake |
Reaction flask volume | Spherical 50L |
Funnel size (mm*mm) | φ450*250（height） |
Funnel material | stainless steel |
Number of reaction bottles | Three ports |
The discharge port is above the ground (mm) | 450 |
Suction port | ￠80 flange port |
Air extraction device | 24# standard port piston valve |
Feeding method | Glass discharge valve, ￠80 flange port |
Dimensions (mm*mm*mm) | 580*600*1530 |
Net weight(kg) | 38 |
Packing size (mm*mm*mm) | 1470*620*700 |
Packing weight (KG) | 67 |
Model | ZF-100L |
Glass material | GG-17 |
Frame material | stainless steel |
Fitting material | 304 stainless steel |
Move method | Universal caster with brake |
Reaction flask volume | Spherical 100L |
Funnel size (mm*mm) | Φ550×320（height） |
Funnel material | stainless steel |
Number of reaction bottles | Three ports |
The discharge port is above the ground (mm) | 450 |
Suction port | ￠80 flange port |
Air extraction device | 24# standard port piston valve |
Feeding method | Glass discharge valve, ￠80 flange port |
Dimensions (mm*mm*mm) | 720×750×1850mm |
