1-5L Single Glass Reactor

Function feature of the Single Glass Reactor

1. Distillation, reflux can be achieved simultaneously

2. Special long-term agitation seal

3. GG17 glass and PTFE materials and contacts, no cross-contamination.

4. Digital speed and high and low temperature display, easy operation

Availability:
Quantity:

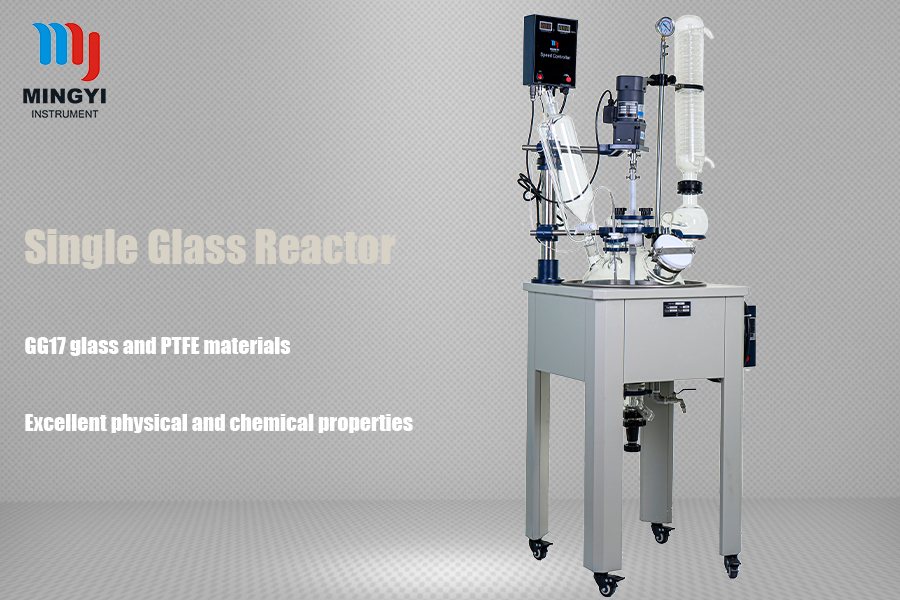

ingle glass reactor

Brief Introduction of the Single Glass Reactor

1. Single glass reactor using borosilicate glass, has excellent physical and chemical properties, bottles and transparent, visible reaction liquid material

2. Stirring tetrafluoroethylene, used in a variety of solvents stirring

3. Motor running smooth, torque, no spark

4. PTFE sealing components, high vacuum

5. Heated oil / water bath with precise control

6. Deconstruction is compact, easy to operate

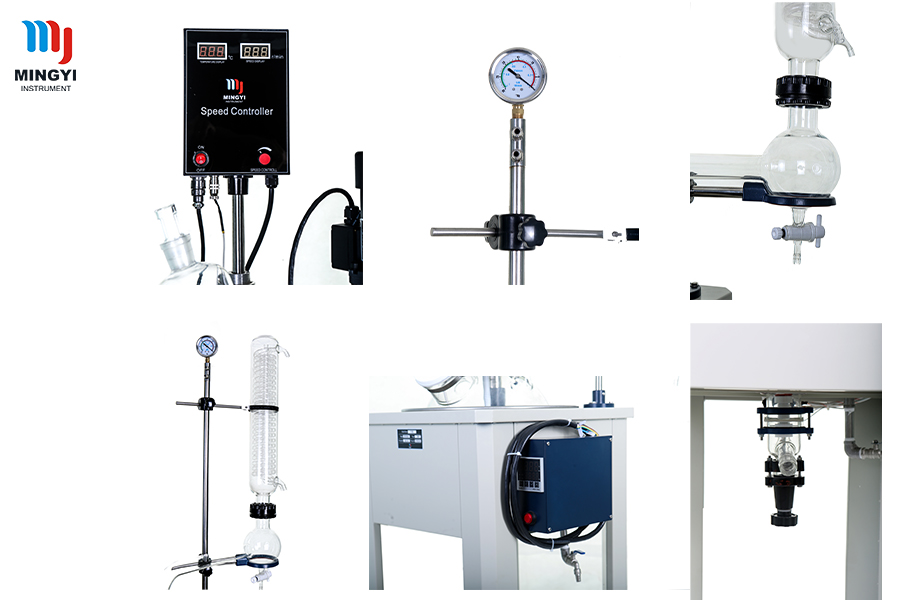

Single glass reactor

Function Features of the Single Glass Reactor

1. Distillation, reflux can be achieved simultaneously

2. Special long-term agitation seal

3. GG17 glass and PTFE materials and contacts, no cross-contamination.

4. Digital speed and high and low temperature display, easy operation

Basic parameter

Product name

Single layer glass reactor

Volume

1L

2L

3L

5L

Glass material

GG-17

Floor-type body holder

Stainless steel

Kettle lid bottle number

5

Reactor temp.range

-80-250C

Vacuum

0.098Mpa

Stirring speed

0-800pm

Stirring Shaft

8mm

Motor power

40W

90W

Heating power

1.5KW

2KW

Voltage(V/Hz)

220V/50Hz

Size(mm*mm*mm)

320*330*1000

430*330*1200

Plate size(mm*mm*mm)

280*330

350*330

410*325

Pot size(mm*mm)

不锈钢    280*170mm

Packing size(mm*mm*mm)

800*480*450

1000*480*480

Gross weight(KG)

26

30

Function

Speed mode

Electronic stepless

Speed Display

Digital Display

The pot temperature display

Digital Display

Sealing method

Tetrafluoroethylene seal assembly, ¢ 50 flange stirring port

Condenser

Vertical 40 * 400mm 24 # standard port

Vertical 60 * 450mm24 # standard port

Dropping device

250ml constant pressure funnel 24 # standard port

500ml constant pressure funnel 29 # standard port

Pressure reducing device

No

24 # standard port valve

Temperature tube

19 # standard port

24# standard port

Collection device

Two adapter headband collection bottle

Vacuum Display

Vacuum Table

Stirring Connection

Universal joints

Stir bar

Description of stainless steel rods, outsourcing tetrafluoroethylene

Optional

Explosion-proof

Proof inverter, explosion-proof electrical EX60W 0-1400 transfer

Kettle temperature display

Optional digital display

Decentralized feeding device

Tetrafluoroethylene discharge valve flanged ¢ 60

Heating device

Electric heating jacket
