100-200 Explosion-proof Jacketed Glass Reactor

Jacket Glass reactor principle is two parts, in the inner glass,the mix bar is continous stirring to make mixing or evaporating reaction under negative vacuum pressue. The stirring is under speed controlling. The jacketed glass could supply heating or cooling material to help the chemical reaction. Recently glass reactors has been widely used in chemical, biological and pharmaceutical experiment and prodcuction.
Availability:
Quantity:

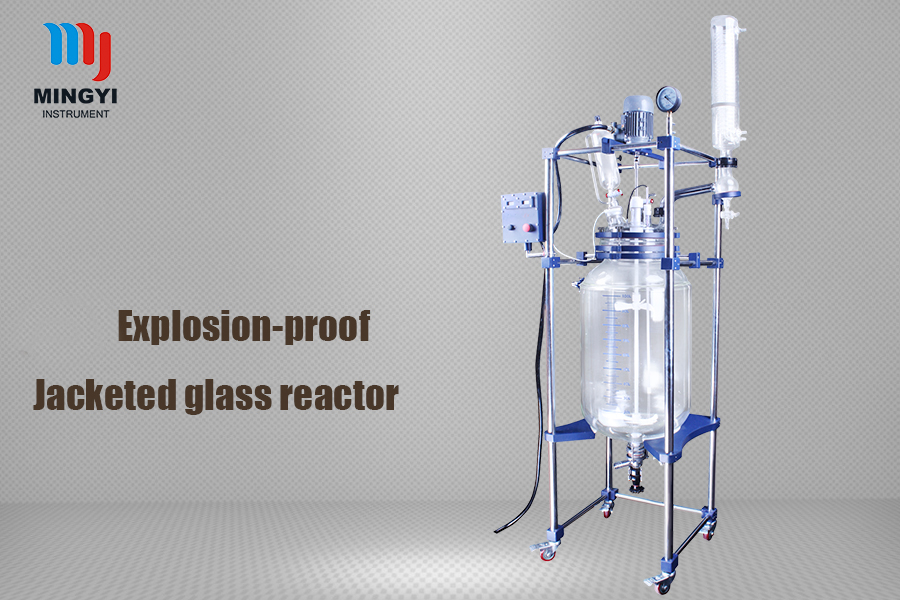

Jacket Glass reactor

Brief Introduction of the Jacket Glass Reactor

The series of reactor kettles is my company according to the actual requirements of customers and the standard production of new double glass reactor with cylindrical glass reactor body, which absorb the international and domestic advantages of similar products, while bold and innovative, not only easy to use (one can easily move, , And the structure of innovative and practical, beautiful appearance generous, leading domestic; for modern chemistry, fine chemicals, bio-pharmaceuticals, new materials, such as the synthesis of experimental and production of the ideal equipment. Specific specifications from 1L to 200L optional.
The working principle of the series reactor: double-layer glass reactor inside the reaction material, but also can be vacuum to do the stirring reaction; sandwich can be connected to heat (water, water or hot oil or electric sets) to do heating or cooling; The reaction solution was controlled to evaporate and reflux.



jacket glass reactor

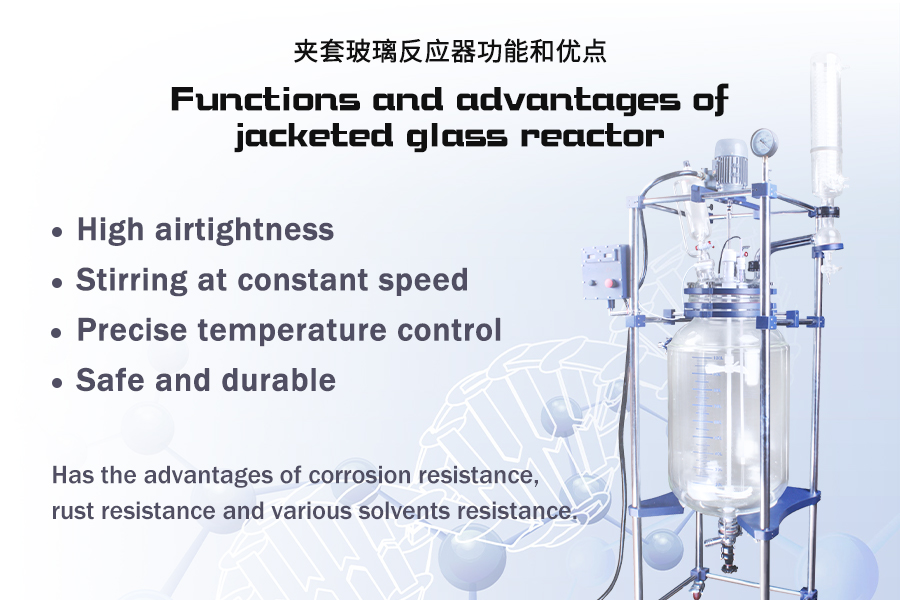

Main Features of the Jacket Glass Reactor

1, The use of borosilicate glass (GG17 material), has excellent physical and chemical properties.
2, Speed mixing, smooth and reliable operation, torque, no spark.
3, PTFE components mechanical seal, proprietary technology, can maintain the market similar products, high vacuum (-0.095mpa or so), the leading domestic.
4, PTEE discharge valve, kettle body and lid are also customized according to customer requirements.
5, The reaction of the sandwich heating (cooling) solution can be completely removed after the reaction, no solution.
6, Regardless of refrigeration or heating, can be produced according to customer requirements matching products.
7, The overall structure of science, novel, practical, beautiful, leading domestic.



Parameters

Name

Jacketed glass reactor

Glass material

GG-17

Structure material

Stainless steel

Volume

100L

150L

200L

Jacketed volume

18L

23L

28L

Flanged out of the oil circulation port

Low into, up out ¢35 flanged

Kettle lid bottle number

6

Ground clearance of the discharge opening

450mm

Reactor body temp.range

-80-250C

Vacuum

0.098Mpa

Stirring speed

0-450rpm

0-280rpm

Stirring Shaft

15mm

Mixing Power

250W1/3

750W1/5

Voltage(V/Hz)

220V/50Hz

Size(mm*mm*mm)

610*610*2500

1250*850*2920

1300*900*3400

Packing size(mm*mm*mm)

1900*700*870

2200*930*1350

2300*930*1350

G.W.(KG)

125

180

190

Function

Speed mode

Electronic step-less

Frequency Speed

Motor configuration

Low-energizing the motor, ratio 3: 1

Low-energizing motor, ratio 5: 1

Speed Display

LCD digital display

Temperature display

PT100 Sensor Digital Display

Sealing method

¢60 flange stirring port

Efficient vertical double re-flux condenser

120*640mm

120*800mm

Reflux (distillation) unit

Reflux elbow with discharge switch, 50 # of milling

Dropping device

2L  40#  standard port

5L drop bottle

Pressure reducing device

34# standard port valve

Temperature tube

24# standard port

Solid addition

¢80 flanged cover with tetrafluoroethylene

Discharge mode

Ramp glass material discharge valve, ¢ 80 flanged

Vacuum Display

Vacuum Table

Stirring Connection

Universal joints

Stir bar

Description of stainless steel rods, outsourcing tetrafluoroethylene
