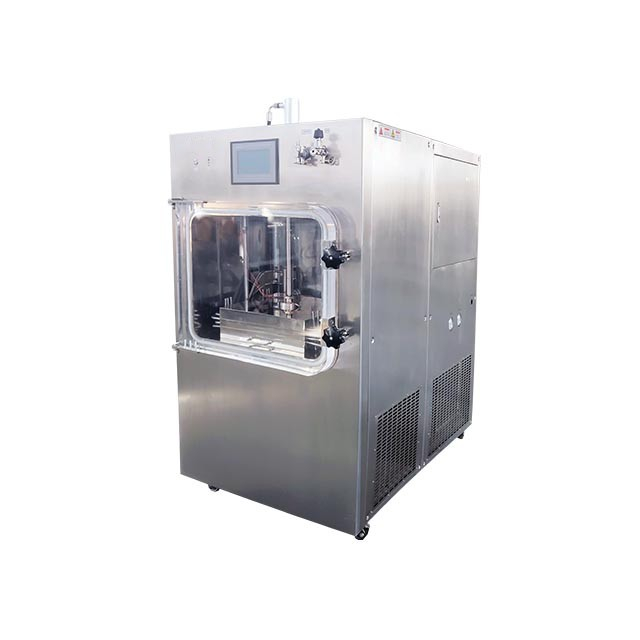

NEL-50FY Top Press Type Silicon Oil Heating Freeze Dryer

This NEL-50FY Top Press Type Silicon Oil Heating Freeze Dryer is full stainless steel with stoppering function,

Can be used for clean room

Drying area:0.5m²

Condenser:10kg

Cold trap:≤-75℃

Availability:
Quantity:

NEL-50FY Top Press Type Silicon Oil Heating Freeze Dryeris widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process,a long term preservation is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.



Freezing and drying process of NEL-50F (silicon oil heating)  are finished in the same place (patented product). It changes the cumbersome operation of the drying process in the past, prevents the contamination of materials, and realized dry sublimation automatically. The model is equipped with shelf heating and has programmable functions. It can memorize freeze-dried curves for users to observe the lyophilization process of materials.


Model

NEL-50FY

Freeze drying area

0.5㎡

Tray numbers

3pcs
Tray size405*405mm
Shelf size410*410mm

Shelf temp. range

-55℃~+70℃

Cold trap temp.

≤-75℃

Ice collecting capacity

≥10KG/24h

Vacuum

≤5pa

power

6500w
Materialstainless steel
Weight800kg
Size1720×950×1760+240mm




freeze dryer

This model is not only suitable for the freeze drying of bulk (liquid, pasty, solid) conventional materials, but also suitable for the drying of the vials materials. When the materials are ready for freeze-drying, they are put into in the vial, then begin freeze drying before the vial's lid unsealed. The capping device compacts the vials' lids after freeze drying to prevent secondary pollution, re-adsorb water, and facilitate long-term storage.


·eutectic point tester

·Freeze drying finished judgment function

·imported vacuum pump

·vacuum pump anti-returned oil device

·oil mist filter system

·Mobile phone APP monitoring system

·LYO-MEGA Software System

·data recorder

·backfill filter

·Automatic backfill and drainage control system

·External hanging bottle device

·non-standard customized
