Thin Film Distillation

The Thin Film Distillation is mainly used for the distillation and purification of heat sensitive substances or high boiling substances under high vacuum. The entire system consists of ss316L stainless steel, PTFE and borosilicate glass 3.3. Main application areas: chemical industry, pharmaceutical industry, petrochemical industry, perfume industry, plastics industry and oil industry.
Availability:
Quantity:
Inquire

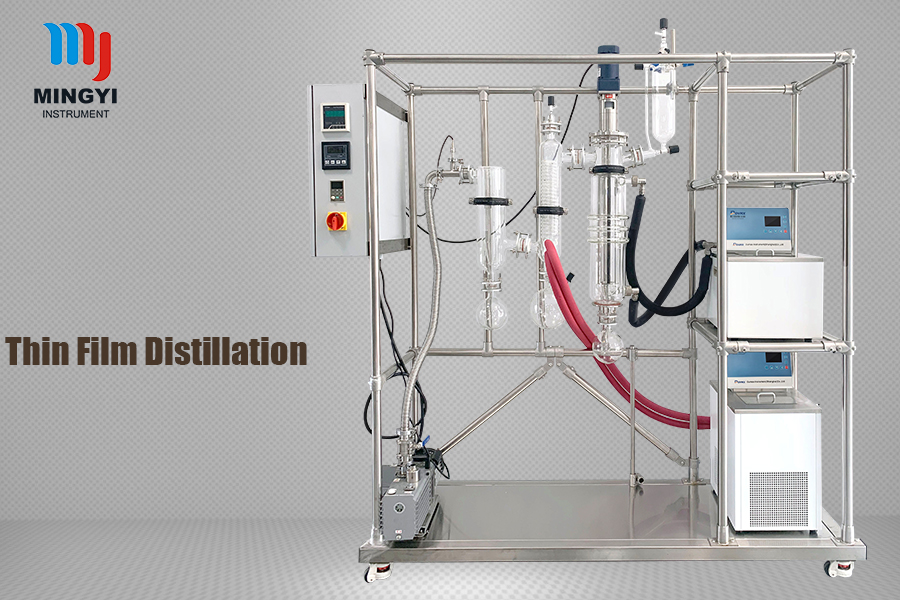

thin film distillation

Brief Introduction of the Thin Film Distillation

Thin Film Distillation is a short-term vacuum distillation, depicted by incredibly low vacuum pressure, 0.01 Tor, which is performed using molecular static. And, it is a procedure for dividing, cleansing, and converging common elements, compound, and thermally sensitive atoms, for example, nutrients and polyunsaturated fats. A temporary show of the distillate describes this procedure to high heats in a high vacuum. The distillation section is used at a short distance between the evaporator and the condenser about 2 cm.

Advantages of  the Thin Film Distillation

  The dual-port design allows for co-current and concurrent vapor path configurations, and a reversible wiper motor with vectored blades allows for tailored material residence times.

  One tool, one person, 10 minute assembly or breakdown reduces cleaning and system downtimes, increasing your bottom line. Clean with your desired solution, while at high temps, without damage to the evaporator body and/or components.

  Stainless steel construction allows for quick heating and cooling, allowing for accelerated system startup and cooldown cycles. Proprietary Aerogel insulated thermal wrap ensures consistent temperatures while also increasing heat retention resulting in reduced power costs and increased performance.

  Modular 80/20 frame allows for aftermarket upgrade options and mounting auxiliary gear. Locking castor wheels allow for quick relocation with secure placement.


Model

Effective evaporation area ㎡

Condensation area ㎡

Barrel diameter

Constant pressure feeding funnel volume

Processing traffic

Motor Power W

Max speed

RPM/MIN

  L/H

MD-60A

0.06

0.1

60

1.5L

0.1∽2.0

120

450

MD-80A

0.1

0.18

80

  1.5L

0.3∽4.0

120

450

MD-100A

0.15

0.3

100

  1.5L

0.5∽5.0

120

450

MD-150A

0.25

0.4

150

 1.5L

1.0∽8.0

120

450

MD-200A

0.35

0.5

190

  1.5L

1.5∽10.0

120

300

MD-230A

0.5

0.65

220

 1.5L

2.0∽15.0

200

300



  Oil- and fat industry for distillation of mono- and diglycerides, fatty acids and their derivates, fatty alcohols, tall oils, terpentines, waxes

  Chemical industry, ethereal oils and olfactory products, detergents, insecticides, fertilizers, peroxides, metal-organic compounds etc.

  Petrochemical industry, parafin´s, lubricating oils, tar containing products, crude oil residues up to AET 720 °C

  Synthetic fibres industry, softeners, elastomeres, polyesters, polymeres

 Pharmaceutical industry,antibiotics, ferments, hop-, tobacco-, maw seed- and similar plant extracts effective as drugs, vitamines, hormones

 Food industry,milk products, aroma concentrates, coffee-, tea-, cacao biocatalyst concentrates, proteins and protein substances, fruit-juice, sugar derivates etc.
