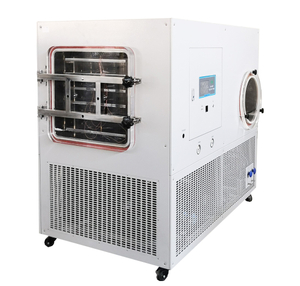

This LGJ-20FY Gland Type Silicon Oil Heating Freeze Dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process,a long term preservation is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.
Availability: | |
---|---|
Quantity: | |
This LGJ-20FY Gland Type Silicon Oil Heating Freeze Dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process,a long term preservation is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.
Freezing and drying process of LGJ-20F (silicon oil heating) are finished in the same place (patented product). It changes the cumbersome operation of the drying process in the past, prevents the contamination of materials, and realized dry sublimation automatically. The model is equipped with shelf heating and has programmable functions. It can memorize freeze-dried curves and comes with u-disc extraction function for users to observe the lyophilization process of materials.
This LGJ-20FY Gland Type Silicon Oil Heating Freeze Dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process,a long term preservation is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.
Freezing and drying process of LGJ-20F (silicon oil heating) are finished in the same place (patented product). It changes the cumbersome operation of the drying process in the past, prevents the contamination of materials, and realized dry sublimation automatically. The model is equipped with shelf heating and has programmable functions. It can memorize freeze-dried curves and comes with u-disc extraction function for users to observe the lyophilization process of materials.
This model is not only suitable for the freeze drying of bulk (liquid, pasty, solid) conventional materials, but also suitable for the drying of the vials materials. When the materials are ready for freeze-drying, they are put into in the vial, then begin freeze drying before the vial's lid unsealed. The capping device compacts the vials' lids after freeze drying to prevent secondary pollution, re-adsorb water, and facilitate long-term storage.
This model is not only suitable for the freeze drying of bulk (liquid, pasty, solid) conventional materials, but also suitable for the drying of the vials materials. When the materials are ready for freeze-drying, they are put into in the vial, then begin freeze drying before the vial's lid unsealed. The capping device compacts the vials' lids after freeze drying to prevent secondary pollution, re-adsorb water, and facilitate long-term storage.
Model | LGJ-20F |
freeze drying area | 0.2㎡ |
tray dimensions | 395×265mm |
tray numbers | 2pcs |
shelf dimensions | 400×270mm |
shelf numbers | 2+1 pcs |
shelf spacing | 70mm |
shelf temp. range | -50℃~+70℃ |
shelf temp. accuracy | ±1℃ |
cold trap temp. | ≤-75℃ |
ice collecting capacity | ≥6KG/24h |
pumping speed | 4L/S |
ultimate speed | ≤5pa |
power | 3000w |
main unit weight | 300kg |
main unit dimensions | 840×750×1580mm |
cooling mode | wind cooled |
bulk capacity | 2L(thickness 10mm) |
vials capacity | Ф12mm:1554pcs |
Ф16mm:868pcs | |
Ф22mm:440pcs |
Model | LGJ-20F |
freeze drying area | 0.2㎡ |
tray dimensions | 395×265mm |
tray numbers | 2pcs |
shelf dimensions | 400×270mm |
shelf numbers | 2+1 pcs |
shelf spacing | 70mm |
shelf temp. range | -50℃~+70℃ |
shelf temp. accuracy | ±1℃ |
cold trap temp. | ≤-75℃ |
ice collecting capacity | ≥6KG/24h |
pumping speed | 4L/S |
ultimate speed | ≤5pa |
power | 3000w |
main unit weight | 300kg |
main unit dimensions | 840×750×1580mm |
cooling mode | wind cooled |
bulk capacity | 2L(thickness 10mm) |
vials capacity | Ф12mm:1554pcs |
Ф16mm:868pcs | |
Ф22mm:440pcs |
·eutectic point tester
·Freeze drying finished judgment function
·imported vacuum pump
·vacuum pump anti-returned oil device
·oil mist filter system
·Mobile phone APP monitoring system
·LYO-MEGA Software System
·data recorder
·backfill filter
·Automatic backfill and drainage control system
·External hanging bottle device
·non-standard customized
·eutectic point tester
·Freeze drying finished judgment function
·imported vacuum pump
·vacuum pump anti-returned oil device
·oil mist filter system
·Mobile phone APP monitoring system
·LYO-MEGA Software System
·data recorder
·backfill filter
·Automatic backfill and drainage control system
·External hanging bottle device
·non-standard customized
